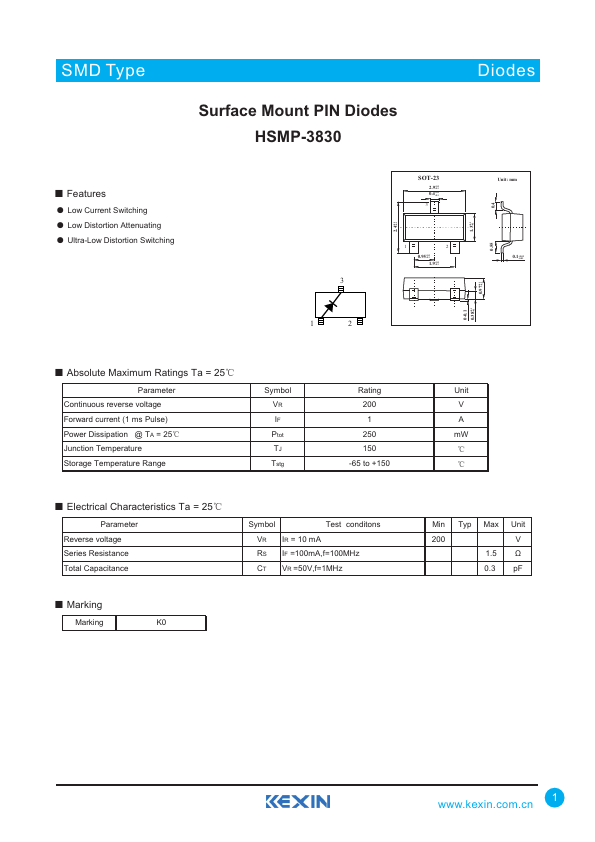

HSMP-3830
Features
- Low Current Switching
- Low Distortion Attenuating
- Ultra-Low Distortion Switching
SOT-23
2.9+0.1 -0.1
0.4+0.1 -0.1
Unit: mm
+0.1 1.3 -0.1
+0.1 2.4 -0.1
0.95+0.1 -0.1 1.9+0.1 -0.1
0.1+0.05 -0.01
+0.1 0.97 -0.1
0-0.1 +0.1 0.38
-0.1
- Absolute Maximum Ratings Ta = 25℃
Parameter Continuous reverse voltage Forward current (1 ms Pulse) Power Dissipation @ TA = 25℃ Junction Temperature Storage Temperature Range
Symbol VR IF Ptot TJ Tstg
Rating 200 1 250 150
-65 to +150
- Electrical Characteristics Ta = 25℃
Parameter Reverse voltage Series Resistance Total Capacitance
Symbol
Test conditons
VR IR = 10 m A
RS IF =100m A,f=100MHz
CT VR =50V,f=1MHz
- Marking
Marking
K0
Unit V A m W ℃ ℃
Min Typ Max...
