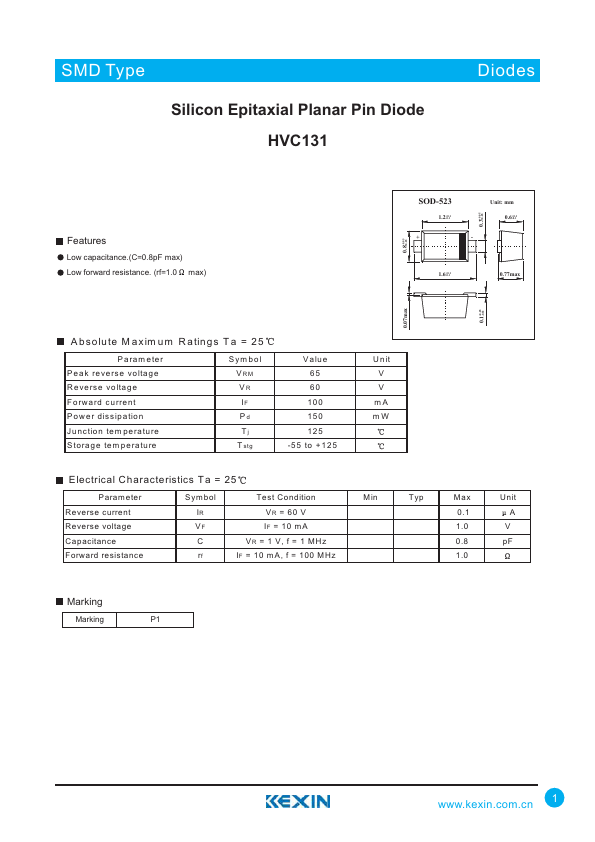

FEATURES

Low capacitance.(C=0.8pF max) Low forward resistance. (rf=1.0 max) +0.05 0.8 -0.05 SOD-523 1.2+0.1 -0.1 + +0.05 0.3 -0.05 Unit: mm 0.6+0.1 -0.1 - 1.6+0.1 -0.1 0.77max +0.05 0.1 -0.02 0.07max A bsolute M axim um R atings T a = 25 Param eter P eak reverse voltage R everse voltage Forward current P ower dissipation Junction tem perature Storage tem perature Sym bol VRM VR IF Pd Tj T stg V alue 65 60 100 150 125 -55 to +125 U nit V V mA mW

ELECTRICAL CHARACTERISTICS

Ta = 25 Param eter Reverse current Reverse voltage Capacitance Forward resistance Sym bol Test Condition M in Typ Max Unit IR VR = 60 V 0.1 A VF IF = 10 m A 1.0 V C VR = 1 V, f = 1 MHz 0.8 pF rf IF = 10 m A, f = 100 MHz 1.0 Marking Marking P1 1
