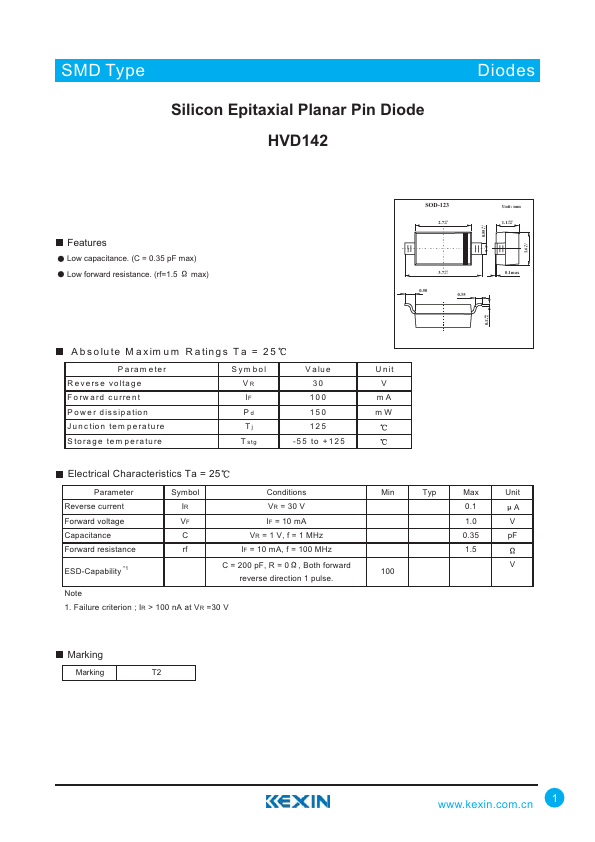

FEATURES
Low capacitance. (C = 0.35 pF max) Low forward resistance. (rf=1.5 max) SOD-123 2.7+0.1 -0.1 Unit: mm 1.1+0.05 -0.05 3.7+0.1 -0.1 0.50 0.35 0.1max +0.05 0.1 -0.02 A b so lu te M a xim u m R a tin g s T a = 2 5 P aram eter R everse voltage Forward current P ow er dissipation Junction tem perature S torage tem perature Sym bol VR IF Pd Tj T stg V alue 30 100 150 125 -55 to +125 U nit V mA mW ELECTRICAL CHARACTERISTICS
Ta = 25 Parameter Symbol Conditions Reverse current IR VR = 30 V Forward voltage VF IF = 10 mA Capacitance C VR = 1 V, f = 1 MHz Forward resistance rf IF = 10 mA, f = 100 MHz ESD-Capability *1 C = 200 pF, R = 0 , Both forward reverse direction 1 pulse. Note 1. Failure criterion ; IR > 100 nA at VR =30 V Min Typ Max Unit 0.1 A 1.0 V 0.35 pF 1.5 V 100 Marking Marking T2 1
