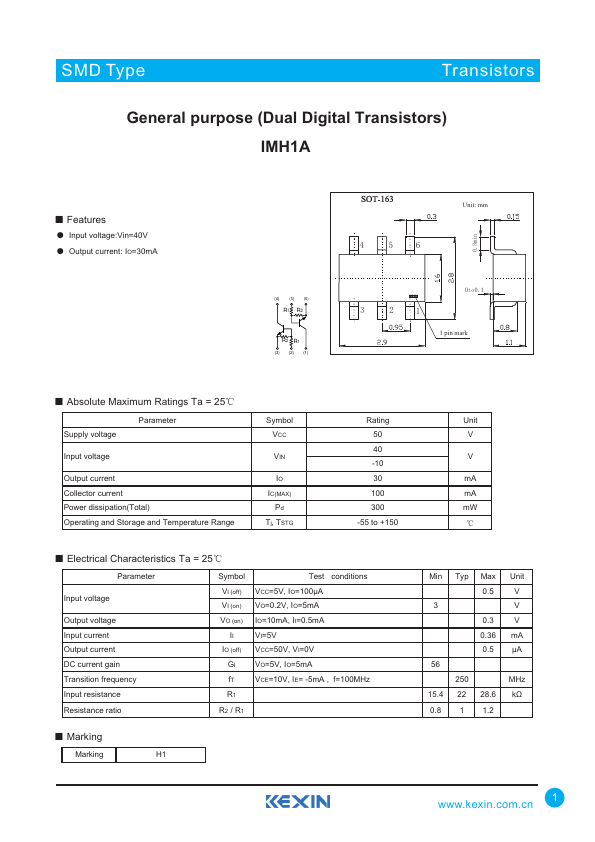

Kexin Electronics IMH1A
Dual Digital Transistors
| Part No. | IMH1A |
|---|---|
| Datasheet | IMH1A Download |
| Manufacturer | Kexin Electronics |
| Description | Dual Digital Transistors |
| Buy | Stock & Price |
FEATURES
● Input voltage:Vin=40V● Output current: IO=30mA (4) (5) (6) R1 R2 R2 R1 (3) (2) (1) 4 56 Unit: mm 0.3min 3 21 0to0.1 1 pin mark
●
ABSOLUTE MAXIMUM RATINGS
Ta = 25℃ Parameter Symbol Rating Unit Supply voltage VCC 50 V Input voltage 40 VIN V -10 Output current IO 30 mA Collector current IC(MAX) 100 mA Power dissipation(Total) Pd 300 mW Operating and Storage and Temperature Range Tj, TSTG -55 to +150 ℃●
ELECTRICAL CHARACTERISTICS
Ta = 25℃ Parameter Input voltage Output voltage Input current Output current DC current gain Transition frequency Input resistance Resistance ratio Symbol Test conditions VI (off) VCC=5V, IO=100μA VI (on) VO=0.2V, IO=5mA VO (on) IO=10mA, II=0.5mA II VI=5V IO (off) VCC=50V, VI=0V GI VO=5V, IO=5mA fT VCE=10V, IE= -5mA , f=100MHz R1 R2 / R1● Marking Marking H1 Min Typ Max 0.5 3 0.3 0.36 0.5 56 250 15.4 22 28.6 0.8 1 1.2 Unit V V V mA μA MHz kΩ 1 SMD Type TransistIoCrs IMH1A
● Typical Characteristics INPUT VOLTAGE : VI(on) (V) 100 VO=0.2V 50 20 10 5 Ta=−...
