Kexin Electronics IMH2A
Dual Digital Transistors
| Part No. | IMH2A |
|---|---|
| Datasheet | IMH2A Download |
| Manufacturer | Kexin Electronics |
| Description | Dual Digital Transistors |
| Buy | Stock & Price |

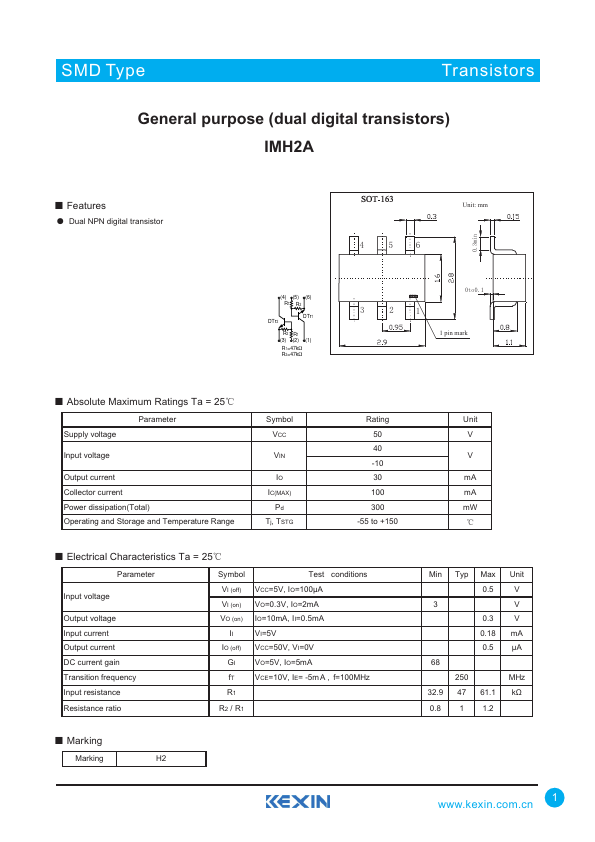

FEATURES
● Dual NPN digital transistor (4) (5) (6) R1 R2 DTr2 DTr1 R2 R1 (3) (2) (1) R1=47kΩ R2=47kΩ 4 56 Unit: mm 0.3min 3 21 0to0.1 1 pin mark●
ABSOLUTE MAXIMUM RATINGS
Ta = 25℃ Parameter Symbol Rating Unit Supply voltage VCC 50 V Input voltage 40 VIN V -10 Output current IO 30 mA Collector current IC(MAX) 100 mA Power dissipation(Total) Pd 300 mW Operating and Storage and Temperature Range Tj, TSTG -55 to +150 ℃●
ELECTRICAL CHARACTERISTICS
Ta = 25℃ Parameter Input voltage Output voltage Input current Output current DC current gain Transition frequency Input resistance Resistance ratio Symbol Test conditions VI (off) VCC=5V, IO=100μA VI (on) VO=0.3V, IO=2mA VO (on) IO=10mA, II=0.5mA II VI=5V IO (off) VCC=50V, VI=0V GI VO=5V, IO=5mA fT VCE=10V, IE= -5m A , f=100MHz R1 R2 / R1● Marking Marking H2 Min Typ Max Unit 0.5 V 3 V 0.3 V 0.18 mA 0.5 μA 68 250 MHz 32.9 47 61.1 kΩ 0.8 1 1.2 1 SMD Type TransistIoCrs

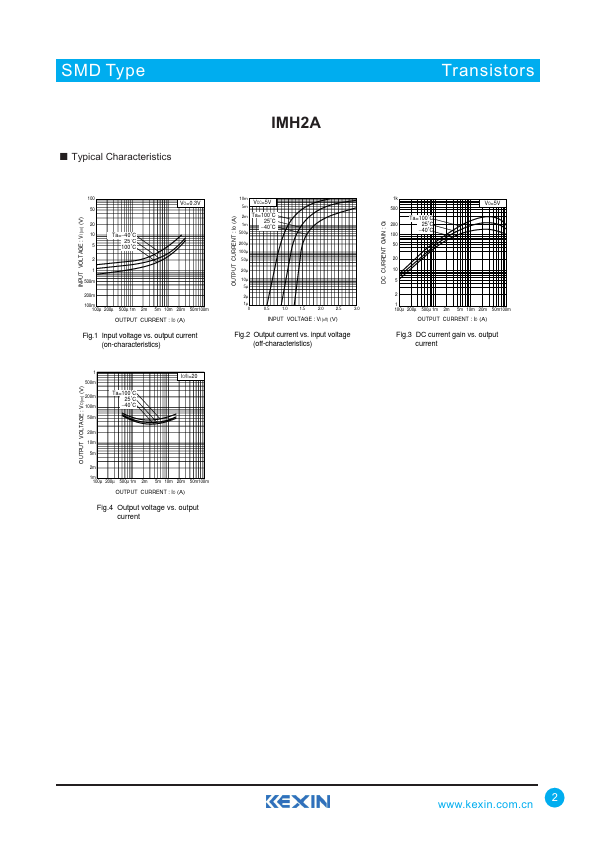

● Typical Characteristics IMH2A INPUT VOLTAGE : VI (on) (V) 100 VO=0.3V 50 20 1...
