IRF1404Z - N-Channel MOSFET

Features

  • s.
  • VDS (V) = 40V.
  • ID = 75 A (VGS = 10V).
  • RDS(ON) ＜ 3.7mΩ (VGS = 10V).
  • Fast Switching.
  • Repetitive Avalanche Allowed up to Tjmax (1.70) 1.30 ± 0.10 TO-220 9.90 ± 0.20 (8.70) ø3.60 ± 0.10 9.20 ± 0.20 (1.46) (45 ) 13.08 ± 0.20 (1.00) 1.27 ± 0.10 1.52 ± 0.10 123 2.54TYP [2.54 ± 0.20 ] 0.80 ± 0.10 2.54TYP [2.54 ± 0.20 ] 10.00 ± 0.20 (3.00) (3.70) 15.90 ± 0.20 18.95MAX. 2.80 ± 0.10 10.08 ± 0.30 MOSFET 4.50 ± 0.20 1.30 +0.10.
  • 0.05 0.50 +0.10.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
IRF1404Z Power MOSFET International Rectifier
IRF1404Z N-Channel MOSFET INCHANGE
IRF1404ZGPBF Power MOSFET International Rectifier
IRF1404ZL Power MOSFET International Rectifier
IRF1404ZLPBF POWER MOSFET International Rectifier

Other Datasheets by Kexin Semiconductor

Part Number Description
IRF3205 Power MOSFET
IRF3808S N-Channel MOSFET
IRF540NS N-Channel MOSFET
IRF7855 N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

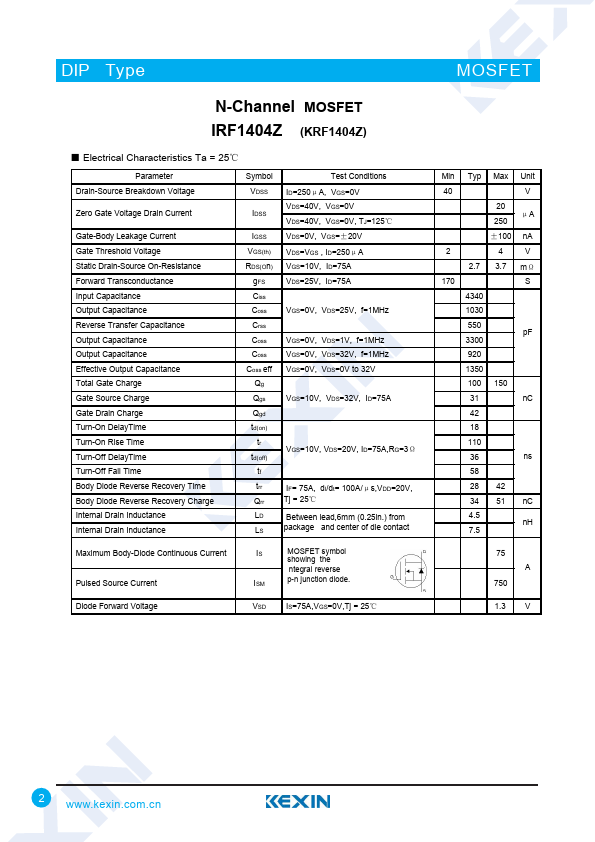

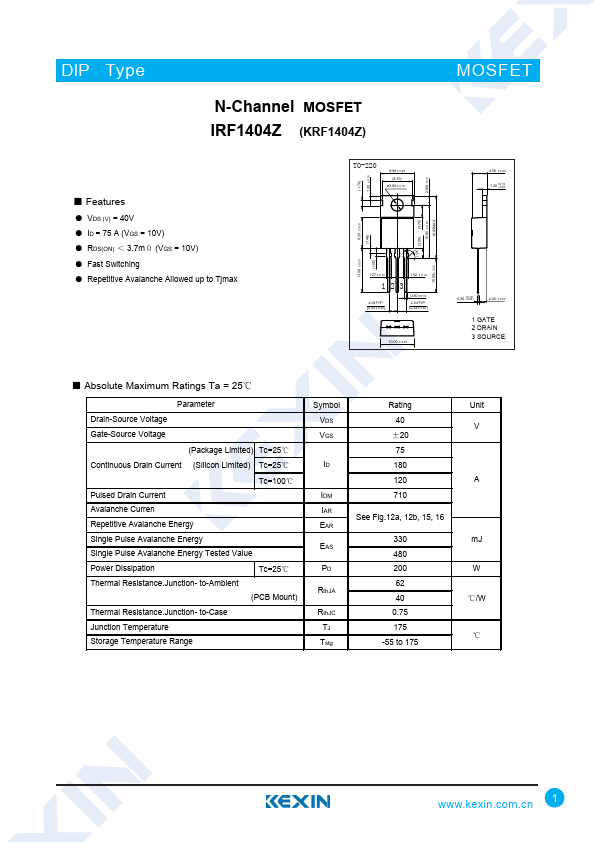

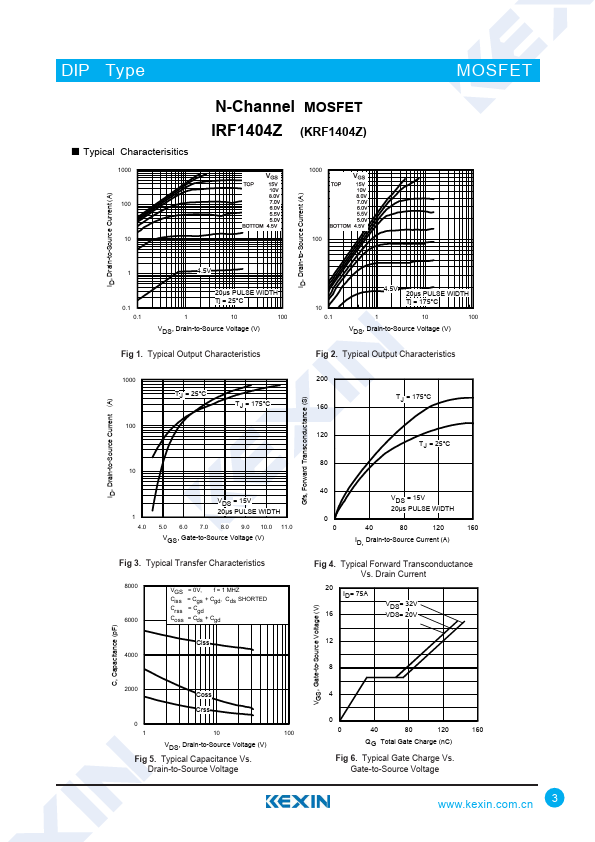

DIP Type N-Channel MOSFET IRF1404Z (KRF1404Z) ■ Features ● VDS (V) = 40V ● ID = 75 A (VGS = 10V) ● RDS(ON) ＜ 3.7mΩ (VGS = 10V) ● Fast Switching ● Repetitive Avalanche Allowed up to Tjmax (1.70) 1.30 ± 0.10 TO-220 9.90 ± 0.20 (8.70) ø3.60 ± 0.10 9.20 ± 0.20 (1.46) (45 ) 13.08 ± 0.20 (1.00) 1.27 ± 0.10 1.52 ± 0.10 123 2.54TYP [2.54 ± 0.20 ] 0.80 ± 0.10 2.54TYP [2.54 ± 0.20 ] 10.00 ± 0.20 (3.00) (3.70) 15.90 ± 0.20 18.95MAX. 2.80 ± 0.10 10.08 ± 0.30 MOSFET 4.50 ± 0.20 1.30 +0.10 –0.05 0.50 +0.10 –0.05 2.40 ± 0.
