KA000Q431 - Adjustable Accurate Reference Source

Features

  • The output voltage can be adjusted to 36V Low dynamic output impedance, its typical value is 0.2 Trapping current capability is 1 to 100mA The typical value of the equivalent temperature factor in the whole temperature scope is 50 ppm/ The effective temperature compensation in the working range of full temperature Low output noise voltage Fast on-state response 2.4 0.1 405 2.9 0.1 0.4 0.1 3 1 2 0.95 0.1 1.9 0.1 Absolute Maximum Ratings (Operating temperature range applies unless otherwi.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
KA00HF AC Solid-State Relay TELEDYNE

Other Datasheets by Kexin Semiconductor

Part Number Description
KA000Q432 Low Voltage Adjustable Precision Shunt Regulator
KA080Q05 Three-Terminal Positive Voltage Regulator
KA080Q06 Three-Terminal Positive Voltage Regulator
KA080Q08 Three-Terminal Positive Voltage Regulator
KA090Q05 Three-Terminal Negative Voltage Regulator

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

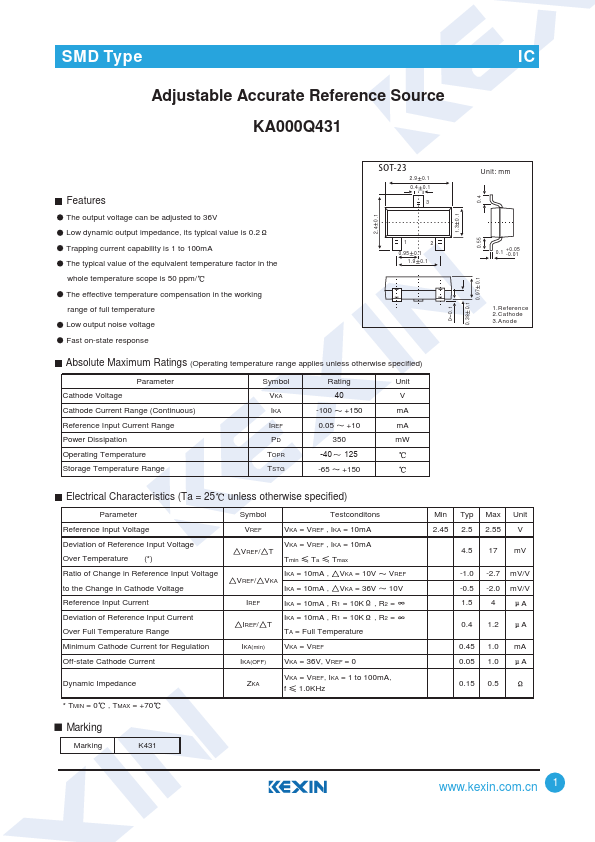

SMD Type IC Adjustable Accurate Reference Source KA000Q431 Features The output voltage can be adjusted to 36V Low dynamic output impedance, its typical value is 0.2 Trapping current capability is 1 to 100mA The typical value of the equivalent temperature factor in the whole temperature scope is 50 ppm/ The effective temperature compensation in the working range of full temperature Low output noise voltage Fast on-state response 2.4 0.1 405 2.9 0.1 0.4 0.1 3 1 2 0.95 0.1 1.9 0.
