KA10O133 Datasheet High Driver Regulator

Manufacturer: Kexin Semiconductor

Overview: SMD Type High Driver Regulator KA10O1XX Ƶ.

Download the KA10O133 datasheet PDF. This datasheet also includes the KA10O130 variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

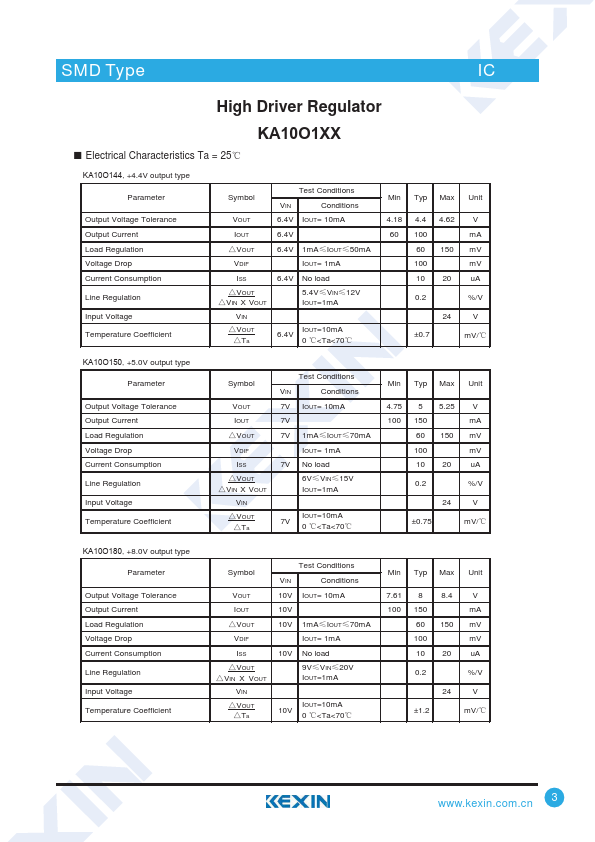

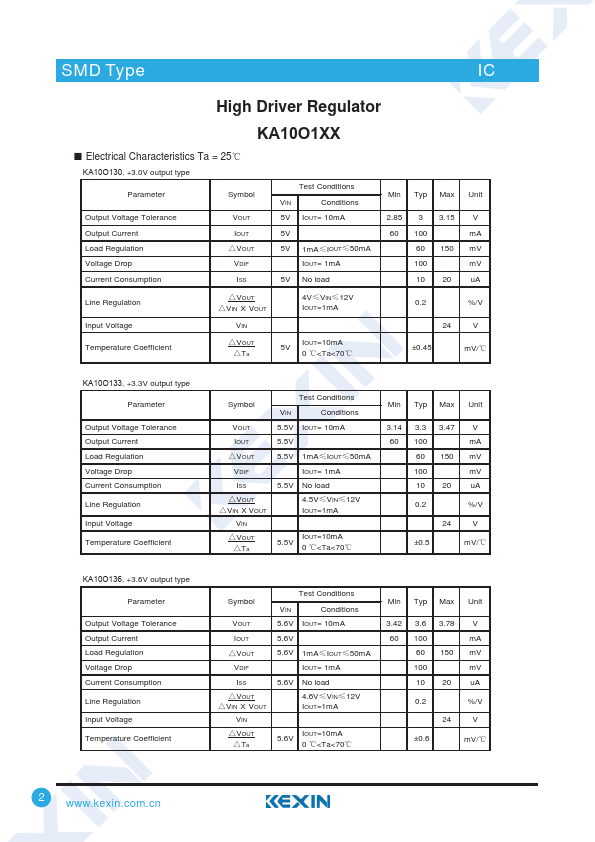

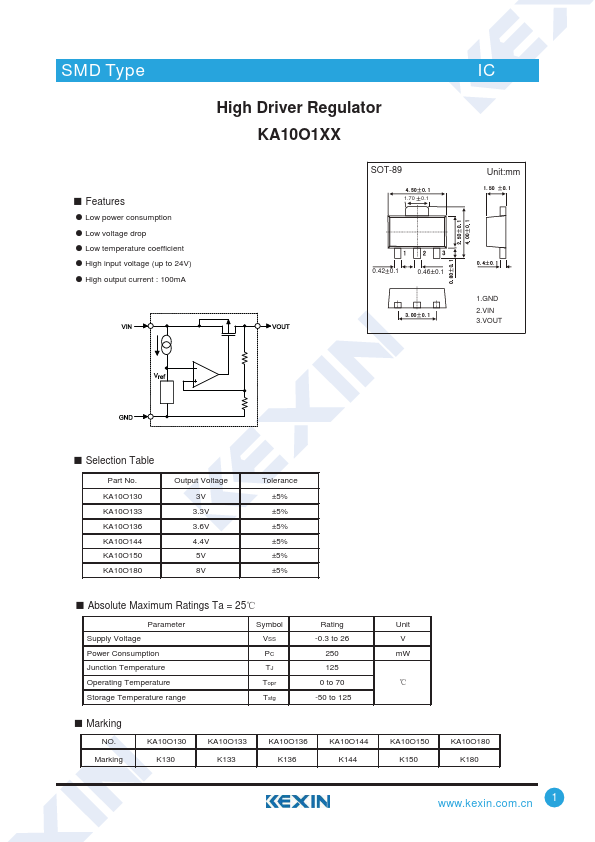

KA10O133 high driver regulator by Kexin Semiconductor - Datasheet Preview

Datasheet Details

Part number	KA10O133
Manufacturer	Kexin Semiconductor
File Size	206.12 KB
Description	High Driver Regulator
Download	KA10O133 Download (PDF)

Key Features

ƽ Low power consumption ƽ Low voltage drop ƽ Low temperature coefficient ƽ High input voltage (up to 24V) ƽ High output current : 100mA SOT-89 1.70 0.1 0.42 0.1 0.46 0.1 IC Unit:mm 1.GND 2.VIN 3.VOUT Ƶ Selection Table Part No. KA10O130 KA10O133 KA10O136 KA10O144 KA10O150 KA10O180 Output Voltage 3V 3.3V 3.6V 4.4V 5V 8V Tolerance ±5% ±5% ±5% ±5% ±5% ±5% Ƶ Absolute Maximum Ratings Ta = 25ć Parameter Supply Voltage Power Consumption Junction Temperature Operating Temperature Storage Tempera.
