KA10O144 Datasheet High Driver Regulator

Manufacturer: Kexin Semiconductor

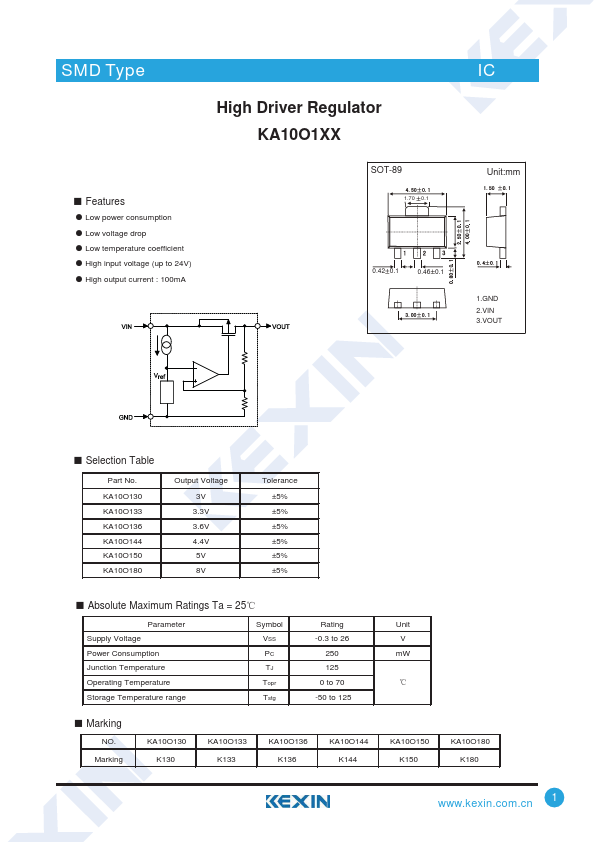

Overview: SMD Type High Driver Regulator KA10O1XX Ƶ.

This datasheet includes multiple variants, all published together in a single manufacturer document.

Key Features

  • ƽ Low power consumption ƽ Low voltage drop ƽ Low temperature coefficient ƽ High input voltage (up to 24V) ƽ High output current : 100mA SOT-89 1.70 0.1 0.42 0.1 0.46 0.1 IC Unit:mm 1.GND 2.VIN 3.VOUT Ƶ Selection Table Part No. KA10O130 KA10O133 KA10O136 KA10O144 KA10O150 KA10O180 Output Voltage 3V 3.3V 3.6V 4.4V 5V 8V Tolerance ±5% ±5% ±5% ±5% ±5% ±5% Ƶ Absolute Maximum Ratings Ta = 25ć Parameter Supply Voltage Power Consumption Junction Temperature Operating Temperature Storage Tempera.
