Kexin Electronics KA10O180
High Driver Regulator
| Part No. | KA10O180 |
|---|---|
| Datasheet | KA10O180 Download |
| Manufacturer | Kexin Electronics |
| Description | High Driver Regulator |
| Buy | Stock & Price |

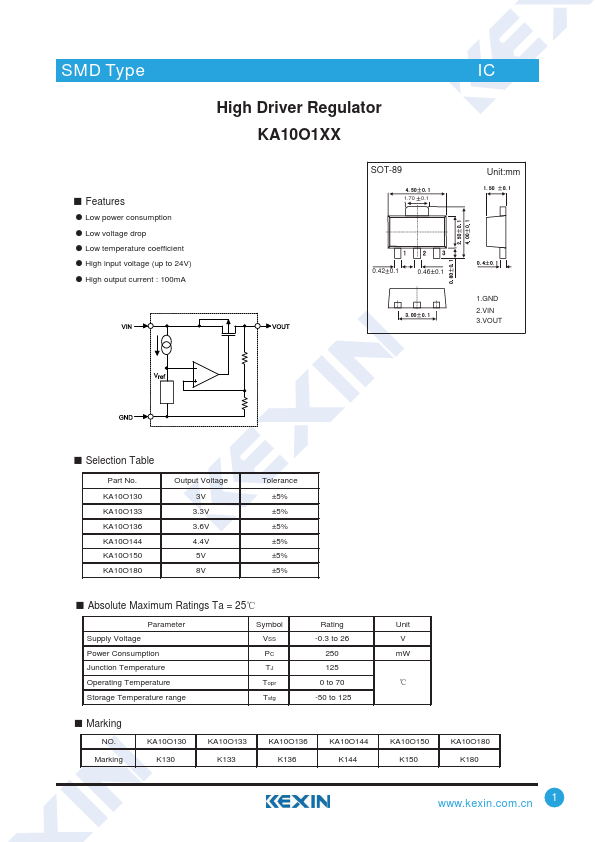

FEATURES
ƽ Low power consumption ƽ Low voltage drop ƽ Low temperature coefficient ƽ High input voltage (up to 24V) ƽ High output current : 100mA SOT-89 1.70 0.1 0.42 0.1 0.46 0.1 IC Unit:mm 1.GND 2.VIN 3.VOUT Ƶ Selection Table Part No. KA10O130 KA10O133 KA10O136 KA10O144 KA10O150 KA10O180 Output Voltage 3V 3.3V 3.6V 4.4V 5V 8V Tolerance ±5% ±5% ±5% ±5% ±5% ±5% ƵABSOLUTE MAXIMUM RATINGS

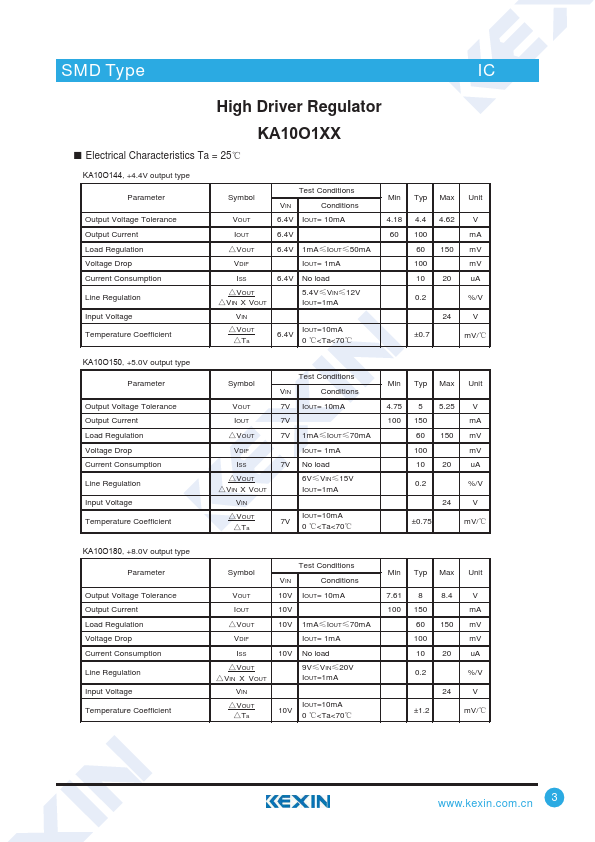

Ta = 25ć Parameter Supply Voltage Power Consumption Junction Temperature Operating Temperature Storage Temperature range Symbol VSS PC TJ Topr Tstg Rating -0.3 to 26 250 125 0 to 70 -50 to 125 Ƶ Marking NO. Marking KA10O130 K130 KA10O133 K133 KA10O136 K136 KA10O144 K144 Unit V mW ć KA10O150 K150 KA10O180 K180 1 SMD Type IC High Driver Regulator .$ 2 ;; ƵELECTRICAL CHARACTERISTICS

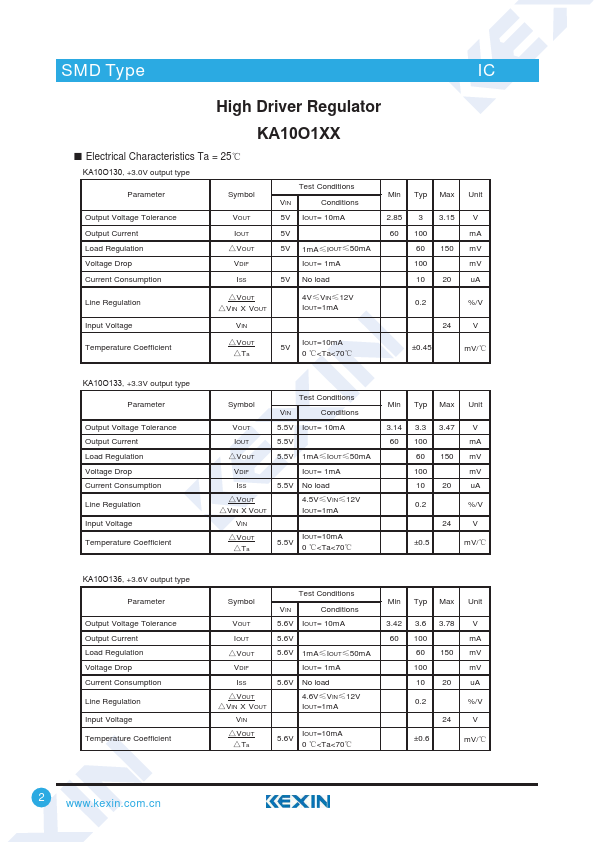

Ta = 25ć .$ 2 , +3.0V output type Parameter Symbol Output Voltage Tolerance Output Current Load Regulation Voltage Drop Current Consumption Line Regulation Input Voltage Temperature Coefficient VOUT IOUT ƸVOUT VDIF ISS ƸVOUT Ƹ...
