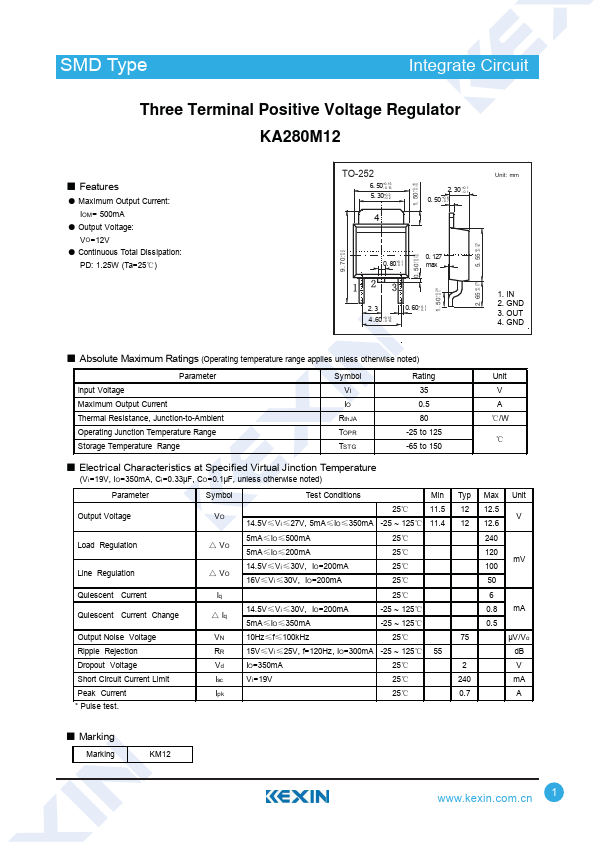

Kexin Electronics KA280M12
Three Terminal Positive Voltage Regulator
| Part No. | KA280M12 |
|---|---|
| Datasheet | KA280M12 Download |
| Manufacturer | Kexin Electronics |
| Description | Three Terminal Positive Voltage Regulator |
| Buy | Stock & Price |
FEATURES
ƽ Maximum Output Current: IOM= 500mA ƽ Output Voltage: VO=12V ƽ Continuous Total Dissipation: PD: 1.25W (Ta=25ć) +0. 9. 70 2 - 0. 2 TO-252 6. 50+0. 15 - 0. 15 5. 30+0. 2 - 0. 2 4 +0. 1. 50 15 - 0. 15 2. 30 +0. 1 - 0. 1 0. 50 +0. 8 - 0. 7 Unit: mm +0. 5. 55 15 - 0. 15 +0. 0. 50 15 - 0. 15 +0. 1. 50 28 - 0. 1 0. 80+0. 1 - 0. 1 0. 127 max 2. 3 4.60 +0. 15 - 0. 15 0. 60+ 0. 1 - 0. 1 +0. 2. 65 25 - 0. 1 1. IN 2. GND 3. OUT 4. GND ƵABSOLUTE MAXIMUM RATINGS
(Operating temperature range applies unless otherwise noted) Parameter Input Voltage Maximum Output Current Thermal Resistance, Junction-to-Ambient Operating Junction Temperature Range Storage Temperature Range Symbol VI IO RthJA TOPR TST G Rating 35 0.5 80 -25 to 125 -65 to 150 Unit V A ć/W ć ƵELECTRICAL CHARACTERISTICS
at Specified Virtual Jinction Temperature (Vi=19V, IO=350mA, Ci=0.33ȝF, CO=0.1ȝF, unless otherwise noted) Parameter Output Voltage Load Regulation Line Regulation Quiescent Current Quiescent Current Change Output Noise Voltage Ripple Rejection Dropout Voltage Short Circuit Current Limit Peak Current * Pulse test.
