KI502DT - N-Channel MOSFET

Features

  • s.
  • VDS (V) = 20V.
  • ID = 0.5 A (VGS = 10V).
  • RDS(ON) ＜ 700mΩ (VGS = 4.5V).
  • RDS(ON) ＜ 850mΩ (VGS = 2.5V).
  • RDS(ON) ＜ 1.25Ω (VGS = 1.8V).

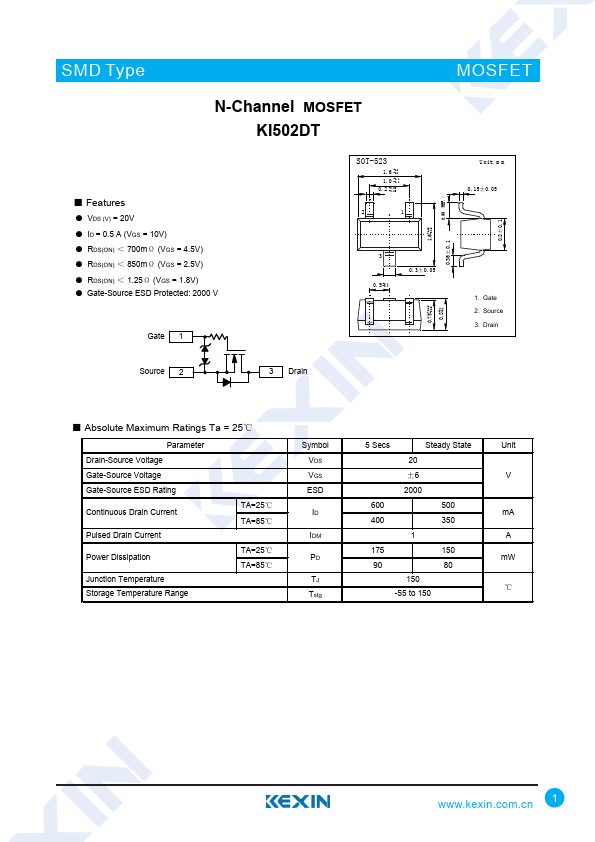

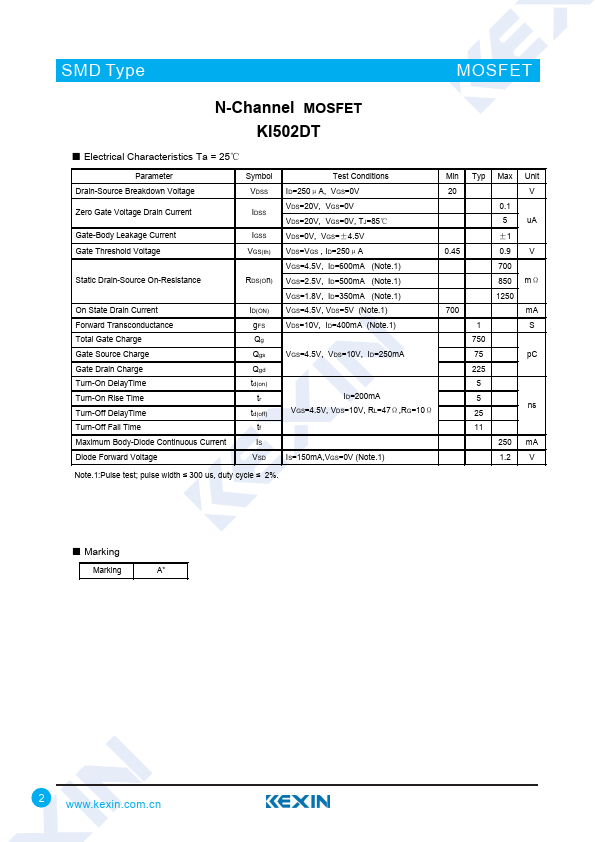

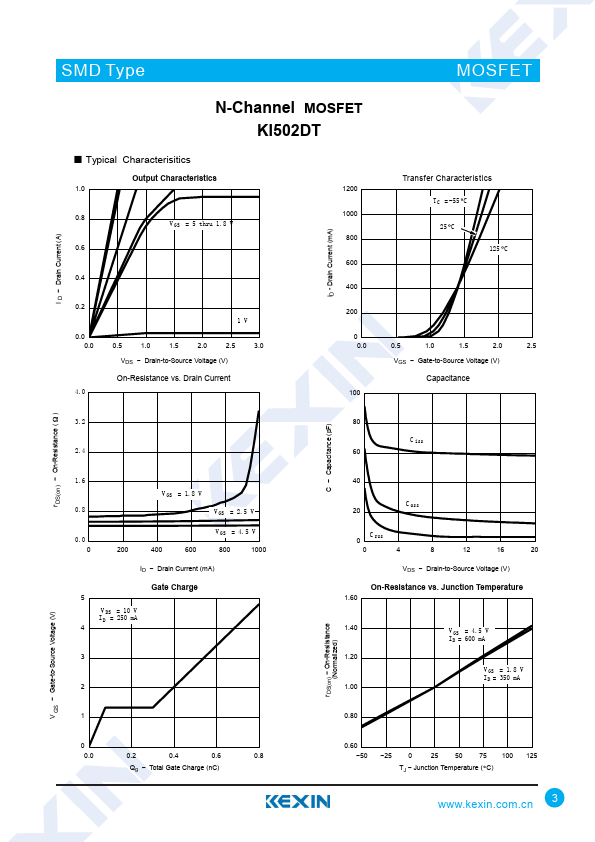

  • Gate-Source ESD Protected: 2000 V SOT-523 1.6 +0.1 -0.1 1.0 +0.1 -0.1 0.2 +0.05 -0.05 2 1 + 1.6 0.15 -0.15 3 0.5 +0.1 -0.1 0.3±0.05 Gate 1 + 0.75 0.05 -0.05 + 0.8 0.1 -0.1 0.55 (REF. ) 0.36±0.1 U nit: m m 0.15±0.05 1. Gate 2. Source 3. Drain 0.8±0.1 Source 2 3 Drain.
