KM393 - Low Power Low Offset Voltage Dual Comparators
Kexin Semiconductor
Features
Wide Single-Supply Range: 2.0 V to 36 V Split-Supply Range: 1.0 V to 18 V Very Low Current Drain Independent of Supply Voltage: 0.4 mA Low Input Bias Current: 25 nA Low Input Offset Current: 5.0 nA Low Input Offset Voltage: 5.0 mV (max) Input Common Mode Range to Ground Level Differential Input Voltage Range Equal to Power Supply Voltage
Representative Schematic Diagram
Absolute Maximum Ratings Ta = 25
Parameter
Symbol
Rating
Unit
Power Supply Voltage
VCC
+36 or 18
V
Input Differentia.
The following content is an automatically extracted verbatim text
from the original manufacturer datasheet and is provided for reference purposes only.
View original datasheet text
SMD Type
Integrate Circuit

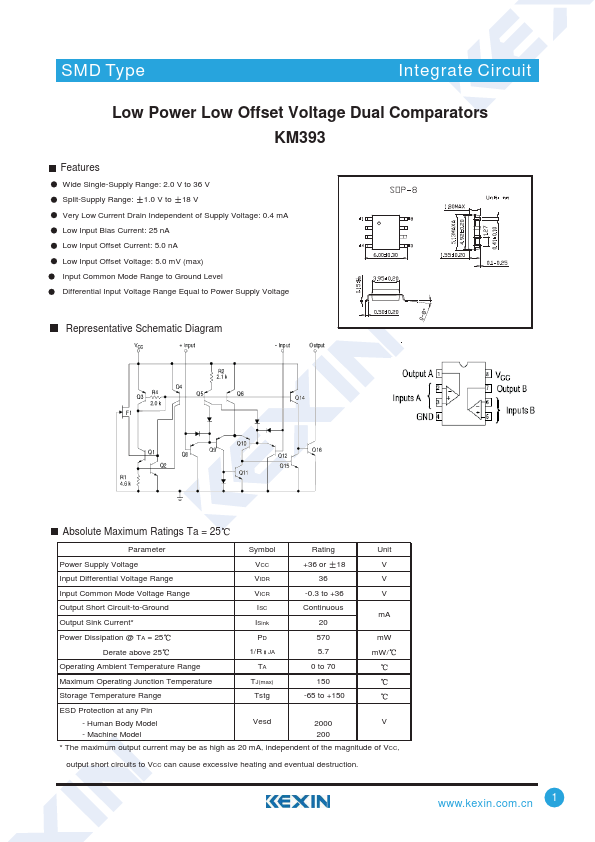

Low Power Low Offset Voltage Dual Comparators KM393
Features
Wide Single-Supply Range: 2.0 V to 36 V Split-Supply Range: 1.0 V to 18 V Very Low Current Drain Independent of Supply Voltage: 0.4 mA Low Input Bias Current: 25 nA Low Input Offset Current: 5.0 nA Low Input Offset Voltage: 5.0 mV (max) Input Common Mode Range to Ground Level Differential Input Voltage Range Equal to Power Supply Voltage
Representative Schematic Diagram
Absolute Maximum Ratings Ta = 25
Parameter
Symbol
Rating
Unit
Power Supply Voltage
VCC
+36 or 18
V
Input Differential Voltage Range
VIDR
36
V
Input Common Mode Voltage Range
VICR
-0.
KM393 Datasheet
