KM5532 - Operational Amplifier

Description

The 5532 is a dual high-performance low noise operational amplifier.

Compared to most of the standard operational amplifiers, such as the 1458, it shows better noise performance, improved output drive capability and considerably higher small-signal and power bandwidths.

Features

  • °Small-Signal Bandwidth: 10 MHz °Output Drive Capability: 600 , 10 VRMS °Input Noise Voltage: 5.0 nV Hz (Typical) °DC Voltage Gain: 50000 °AC Voltage Gain: 2200 at 10 kHz °Power Bandwidth: 140 kHz °Slew Rate: 9.0 V/ s °Large Supply Voltage Range: 3.0 to 20 V °Compensated for Unity Gain °PbæFree Packages are Available PIN.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
KM50-E1-FLK Smart Power Monitor OMRON
KM580BB55A programmable parallel interface ETC
KM580BM80A parallel central An 8-bit processor ETC
KM580VA86 bidirectional 8-bit non-inverting bus driver ETC
KM580VK28 a system controller and a bus shaper ETC

Other Datasheets by Kexin Semiconductor

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

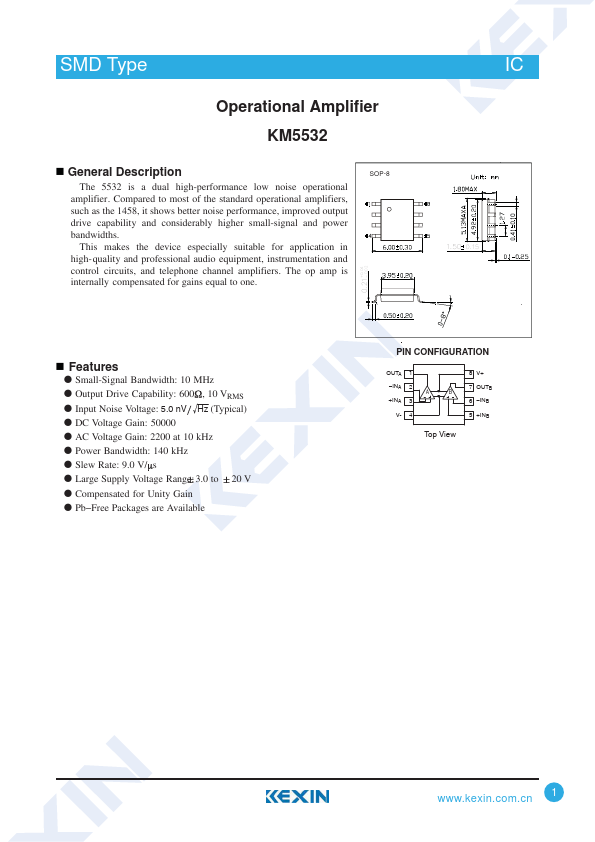

SMD Type Operational Amplifier KM5532 Ƶ General Description The 5532 is a dual high-performance low noise operational amplifier. Compared to most of the standard operational amplifiers, such as the 1458, it shows better noise performance, improved output drive capability and considerably higher small-signal and power bandwidths. This makes the device especially suitable for application in high-quality and professional audio equipment, instrumentation and control circuits, and telephone channel amplifiers. The op amp is internally compensated for gains equal to one. SOP-8 IC 1.50 0.15 0.21+-00..0042 Ƶ Features °Small-Signal Bandwidth: 10 MHz °Output Drive Capability: 600 , 10 VRMS °Input Noise Voltage: 5.
