KMB1117 - 1A Low Dropout Positive Adjustable or Fixed-Mode Regulator

Features

  • 1.4V maximum dropout at full load current Fast transient response Output current limiting Built-in thermal shutdown Good noise rejection 3-Terminal Adjustable or Fixed 1.5V, 1.8V, 1.9V,2.5V, 3.3V, 5.0V +0.2 5.28 -0.2 +0.2 8.7 -0.2 TO-263 +0.2 4.57 +0.1 -0.2 1.27-0.1 Unit: mm +0.1 1.27 -0.1 +0.2 2.54 -0.2 15.25-+00..22 5.60 1.27+0.1 -0.1 0.1max 2.54+0.2 -0.2 5.08+0.1 -0.1 0.81+0.1 -0.1 2.54 0.4+0.2 -0.2 1 Adj(GND) 2 Vout 3 Vin Absolute Maximum Ratings Ta = 25 Parameter DC Suppl.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
KMB110F SCHOTTKY SURFACE MOUNT FLAT BRIDGE RECTIFIER Sunmate
KMB12F SCHOTTKY SURFACE MOUNT FLAT BRIDGE RECTIFIER Sunmate
KMB14F SCHOTTKY SURFACE MOUNT FLAT BRIDGE RECTIFIER Sunmate
KMB16F SCHOTTKY SURFACE MOUNT FLAT BRIDGE RECTIFIER Sunmate
KMB18F SCHOTTKY SURFACE MOUNT FLAT BRIDGE RECTIFIER Sunmate

Other Datasheets by Kexin Semiconductor

Part Number Description
KMBD1201 Switching Diodes
KMBD1203 Switching Diodes
KMBD1204 Switching Diodes
KMBD1205 Switching Diodes
KMBD2838 Small Signal Diode

Full PDF Text Transcription

Click to expand full text

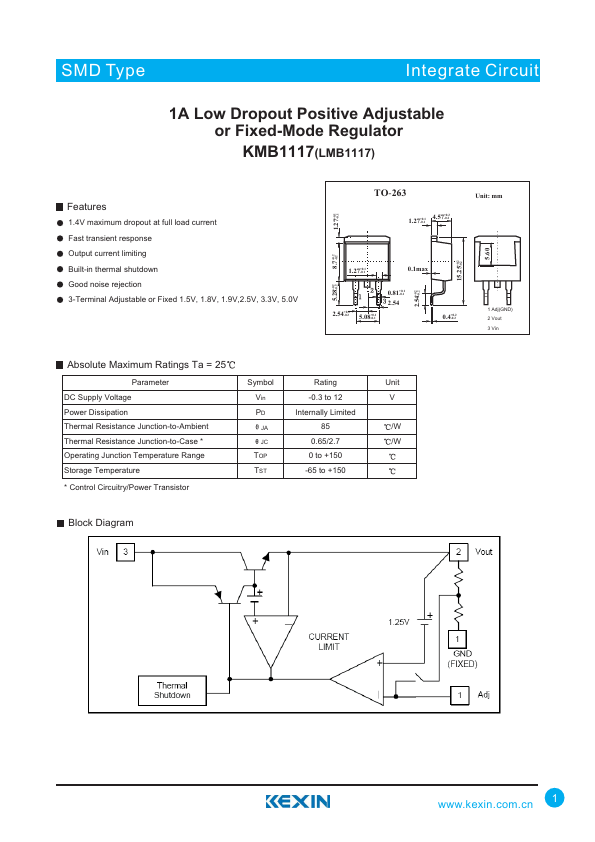

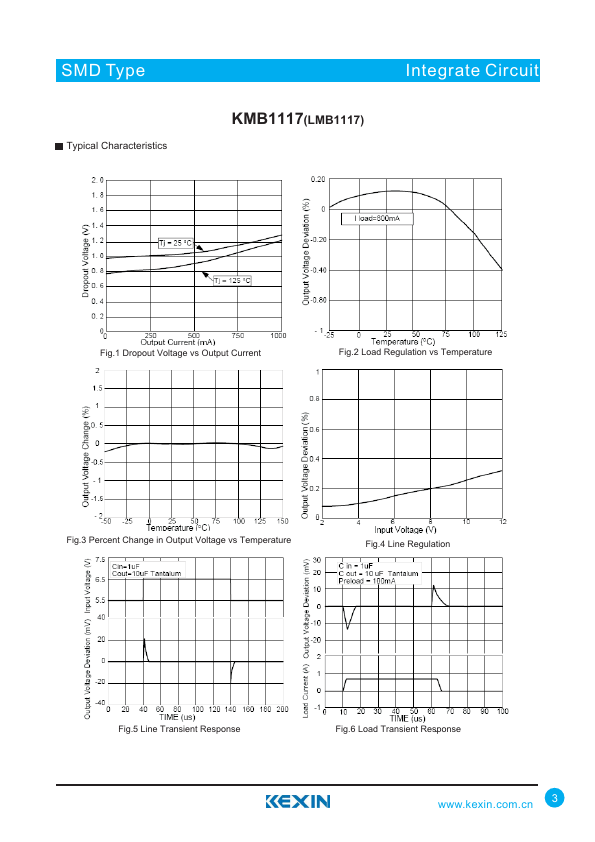

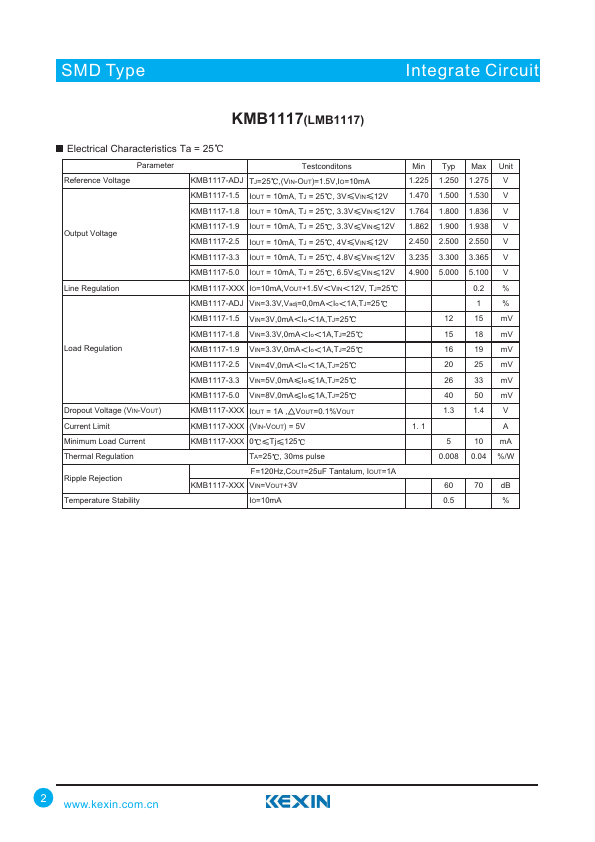

SMD Type Integrate CirIcCuit 1A Low Dropout Positive Adjustable or Fixed-Mode Regulator KMB1117(LMB1117) Features 1.4V maximum dropout at full load current Fast transient response Output current limiting Built-in thermal shutdown Good noise rejection 3-Terminal Adjustable or Fixed 1.5V, 1.8V, 1.9V,2.5V, 3.3V, 5.0V +0.2 5.28 -0.2 +0.2 8.7 -0.2 TO-263 +0.2 4.57 +0.1 -0.2 1.27-0.1 Unit: mm +0.1 1.27 -0.1 +0.2 2.54 -0.2 15.25-+00..22 5.60 1.27+0.1 -0.1 0.1max 2.54+0.2 -0.2 5.08+0.1 -0.1 0.81+0.1 -0.1 2.54 0.4+0.2 -0.
