KO4430 Datasheet N-channel MOSFET

Manufacturer: Kexin Semiconductor

Overview: SMD Type N-Channel MOSFET AO4430 (KO4430) ■.

Datasheet Details

Part number	KO4430
Manufacturer	Kexin Semiconductor
File Size	204.63 KB
Description	N-Channel MOSFET
Datasheet	KO4430-Kexin.pdf

Key Features

s.
VDS (V) = 30V.
ID = 18 A (VGS = 10V).
RDS(ON) ＜ 5.5mΩ (VGS = 10V).
RDS(ON) ＜ 7.5mΩ (VGS = 4.5V) SOP-8 +0.04 0.21 -0.02 D G S MOSFET 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain.

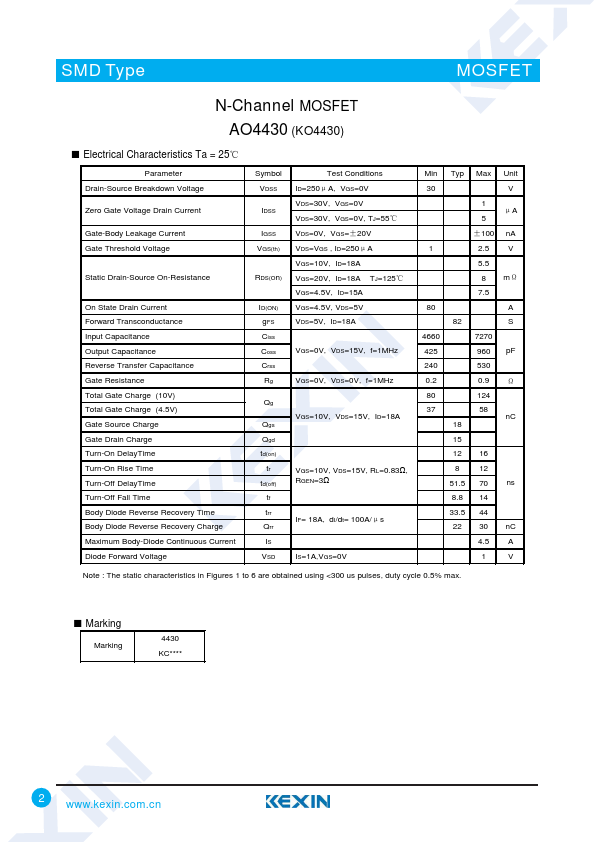

Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Avalanche Current Repetitive Avalanche Energy Power Dissipation Thermal Resistance. Junction- to-Ambient Thermal Resista.
