KSA1201 Datasheet PNP Epitaxial Silicon Transistor

Manufacturer: Kexin Semiconductor

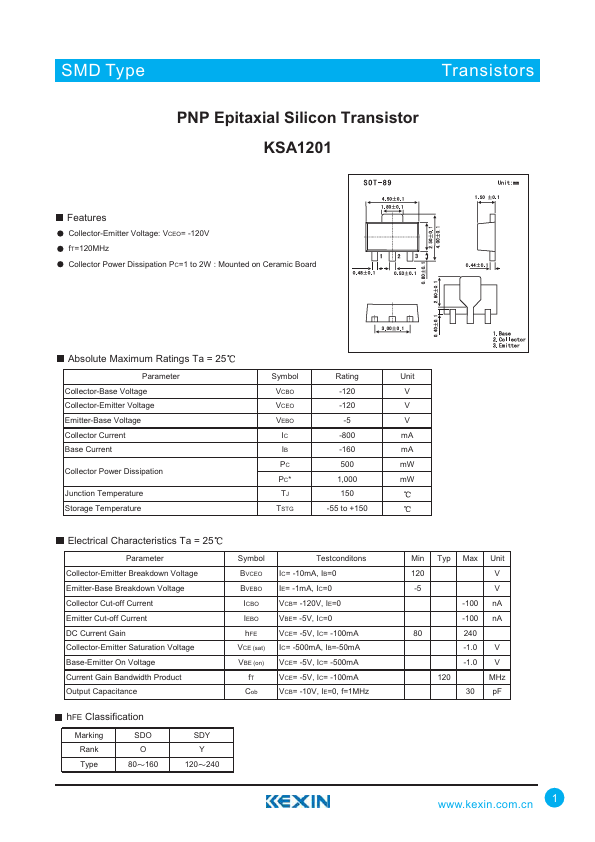

Overview: SMD Type Transistors PNP Epitaxial Silicon Transistor KSA1201.

Datasheet Details

Part number	KSA1201
Manufacturer	Kexin Semiconductor
File Size	45.88 KB
Description	PNP Epitaxial Silicon Transistor
Datasheet	KSA1201-Kexin.pdf

Collector-Emitter Voltage: VCEO= -120V fT=120MHz Collector Power Dissipation PC=1 to 2W : Mounted on Ceramic Board Absolute Maximum Ratings Ta = 25 Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Base Current Collector Power Dissipation Junction Temperature Storage Temperature Symbol VCBO VCEO VEBO IC IB PC PC.
TJ TSTG Rating -120 -120 -5 -800 -160 500 1,000 150 -55 to +150 Electrical Characteristics Ta = 25 Parameter Collector-Emitter Br.
