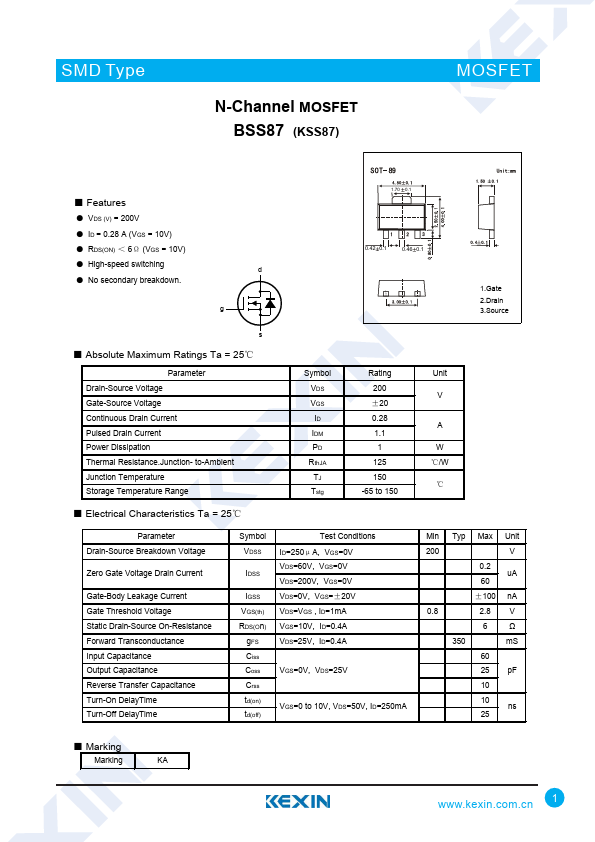

KSS87 Datasheet N-channel MOSFET

Manufacturer: Kexin Semiconductor

Overview: SMD Type N-Channel MOSFET BSS87 (KSS87) MOSFET ■.

Datasheet Details

s.
VDS (V) = 200V.
ID = 0.28 A (VGS = 10V).
RDS(ON) ＜ 6Ω (VGS = 10V).
High-speed switching d.
No secondary breakdown. g 1.70 0.1 0.42 0.1 0.46 0.1 1.Gate 2.Drain 3.Source s.
Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current Power Dissipation Thermal Resistance. Junction- to-Ambient Junction Temperature Storage Temperature Range Symbol VDS VGS ID IDM PD RthJA TJ Tstg Rating.
