KTA1661 Datasheet | Kexin Semiconductor

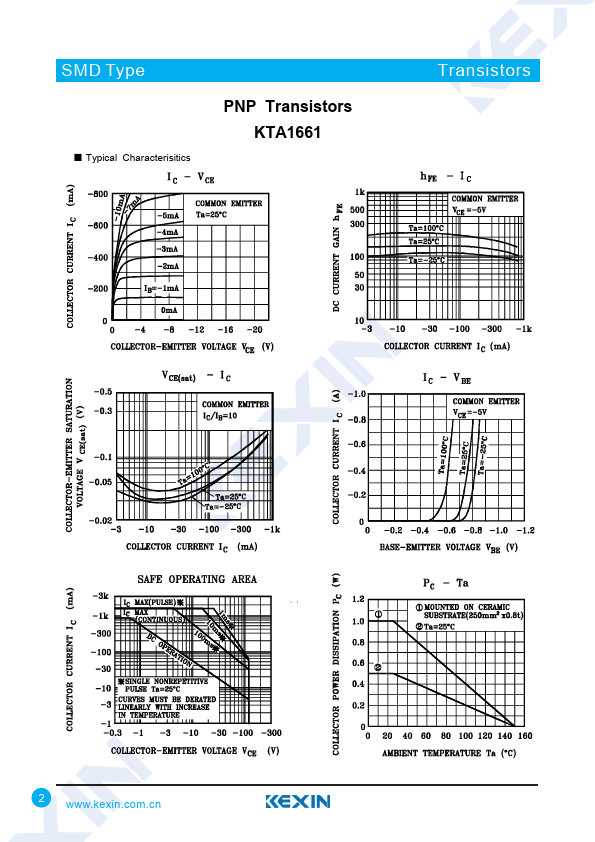

Features - High Voltage - High Transition Frequency - Small Flat Package - plementary to KTC4373 1.70 0.1 0.42 0.1 0.46 0.1 1.Base 2.Collector 3.Emitter - Absolute Maximum Ratings Ta = 25℃ Parameter Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Collector Current - Continuous Base Current Collector Power Dissipation Junction Temperature Storage Temperature range Symbol VCBO VCEO VEBO IC IB TJ Tstg Rating -120 -120 -5 -800 -160 500 1 150 -55 to 150 - Electrical Characteristics Ta = 25℃ Parameter Collector- base breakdown voltage Collector- emitter breakdown voltage Emitter - base breakdown voltage Collector-base cut-off current Emitter cut-off current Collector-emitter saturation voltage Base - emitter saturation voltage Base - emitter voltage DC current gain Collector output capacitance Transition frequency Symbol Test Conditions VCBO Ic= -1m A， IE=0 VCEO Ic= -10 m A， IB=0 VEBO IE= -1m A， IC=0 ICBO VCB= -120 V , IE=0 IEBO VEB= -5V , IC=0 VCE(sat) IC=-500 m A, IB=-50m A VBE(sat) IC= -500 m A, IB=- 50m A VBE VCE= -5V, IC= -500m A h FE VCE= -5V, IC= -100m A Cob VCB= -10V, IE= 0,f=1MHz f T VCE= -5V, IC= -100m...
