KTA1668 Datasheet PNP Transistors

Manufacturer: Kexin Semiconductor

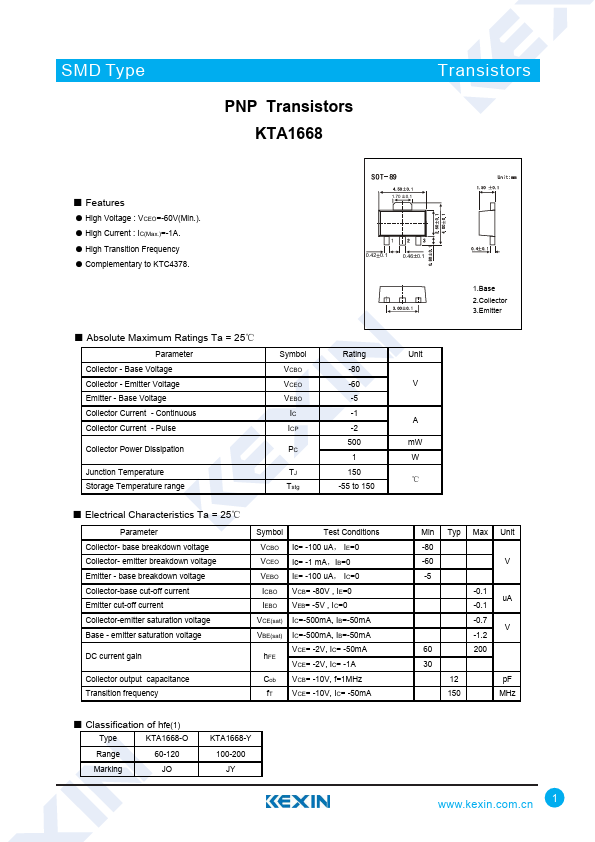

Overview: SMD Type PNP Transistors KTA1668 Transistors ■.

Key Features

  • s.
  • High Voltage : VCEO=-60V(Min. ).
  • High Current : IC(Max. )=-1A.
  • High Transition Frequency.
  • Complementary to KTC4378. 1.70 0.1 0.42 0.1 0.46 0.1 1.Base 2.Collector 3.Emitter.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Symbol Rating Unit Collector - Base Voltage Collector - Emitter Voltage VCBO -80 VCEO -60 V Emitter - Base Voltage VEBO -5 Collector Current - Continuous Collector Current - Pulse IC -1 A ICP -2 Collector Power Dissipation 500 m.
