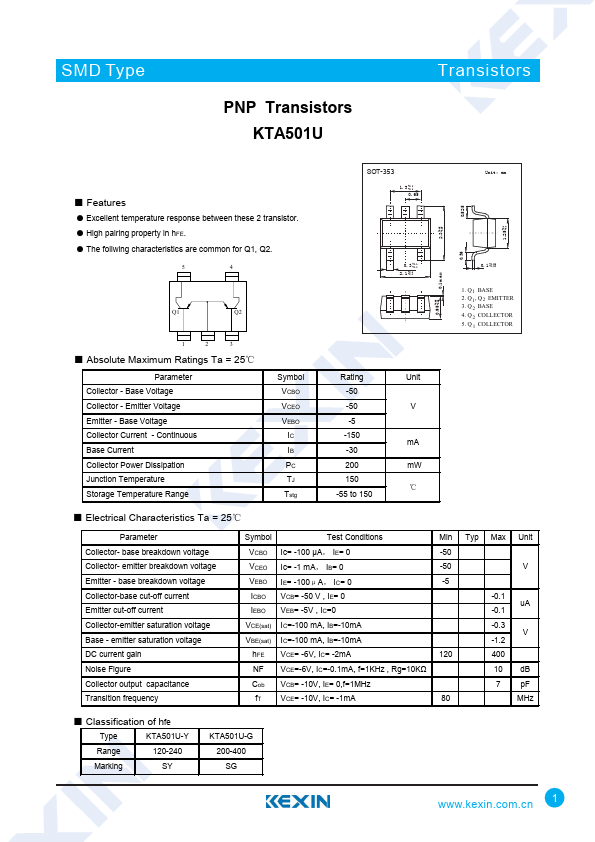

KTA501U
KTA501U is PNP Transistors manufactured by Kexin Semiconductor.
Features
- Excellent temperature response between these 2 transistor.
- High pairing property in h FE.
- The follwing characteristics are mon for Q1, Q2.
SOT-353
1.3 +0.1 -0.1 0.65
0.3 +0.1 -0.1
2.1 +0.1 -0.1
Q1
Q2
- Absolute Maximum Ratings Ta = 25℃
Parameter Collector
- Base Voltage Collector
- Emitter Voltage Emitter
- Base Voltage Collector Current
- Continuous Base Current Collector Power Dissipation Junction Temperature Storage Temperature Range
Symbol VCBO VCEO VEBO IC IB PC TJ Tstg
Rating -50 -50 -5 -150 -30 200 150
-55 to 150
Unit V m A m W ℃
+ 0.95 0.05
- 0.05
0.1m ax
+0.15 2.3
- 0.15
Unit: mm
0.1 +0.05 -0.02
1. Q1 BASE 2. Q1, Q 2 EMITTER 3. Q 2 BASE 4. Q 2 COLLECTOR 5. Q 1 COLLECTOR
+ 1.25 0.1
- 0.1
- Electrical Characteristics Ta = 25℃
Parameter Collector- base breakdown voltage Collector- emitter breakdown voltage Emitter
- base breakdown voltage Collector-base cut-off current Emitter cut-off current Collector-emitter saturation voltage...
