KUP75N08 - N-Channel Power MOSFET

Key Features

  • V DS= 75 V,RD S(on)= 0.00 9Ω@ VGS =1 0V ,ID=30A V DS= 75 V,RD S(on)= 0.01 1Ω@ VGS =4 .5V ,ID=20A.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
KUPG-560N-100 LED ETC

Other Datasheets by Kexin Semiconductor

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

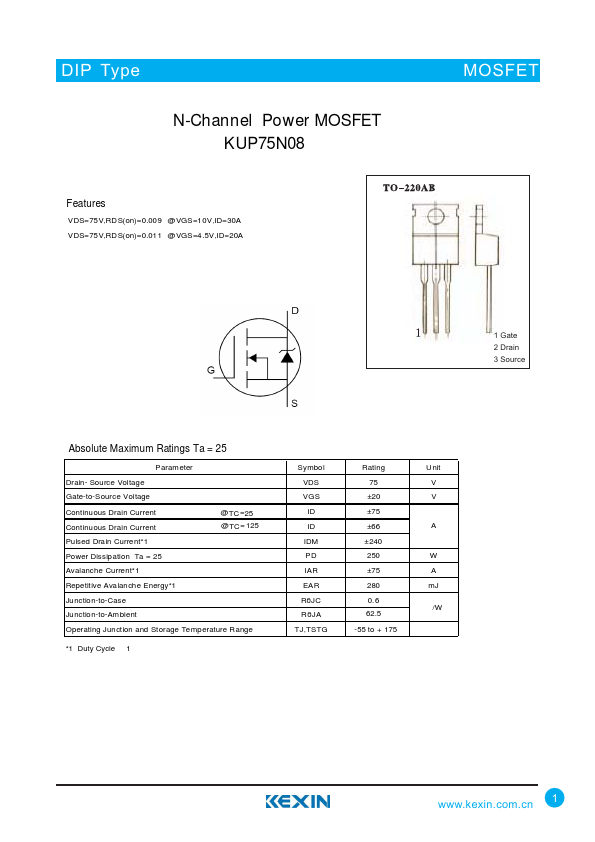

DSMIPDTTyyppee N-Channel Power MOSFET KUP75N08 Features V DS= 75 V,RD S(on)= 0.00 9Ω@ VGS =1 0V ,ID=30A V DS= 75 V,RD S(on)= 0.01 1Ω@ VGS =4 .5V ,ID=20A MOSFICET 1 Gate 2 Drain 3 Source Absolute Maximum Ratings Ta = 25 P aram eter Drain- Source Voltage Gate-to-Source Voltage Continuous Drain Current Continuous Drain Current @TC =25 @TC = 125 Pulsed Drain Current*1 Power Dissipation Ta = 25 Avalanche Current*1 Repetitive Avalanche Energy*1 Ju nctio n-to-Cas e Ju nctio n-to-Am bi ent Operating Junction and Storage Temperature Range *1 Duty Cycle 1 S y mbo l VDS VGS ID ID IDM PD IAR EAR RθJC R θJA TJ,TSTG Rating 75 ±20 ±75 ±66 ± 240 250 ±75 280 0. 6 62.5 -55 to + 175 U nit V V A W A mJ /W www.kexin.com.
