KX20N65V
KX20N65V is N-Channel MOSFET manufactured by Kexin Semiconductor.
Features
- VDS (V) = 650V
- ID = 21A
- RDS(ON) < 180mΩ
Tr Man Osi Ss Fto Ers T
N-Channel MOSFET KX20N65V
TO-220AB
3.04(max) 2.54 (min)
10.53(max) 9.66 (min)
4.039.6(1m(amx)in)
1.39 (max) 1.15 (min)
Unit:mm
4.83 (max) 4.07 (min)
6.47 (max) 5.97 (min)
15.75(max) 14.48 (min) 4.10 (max) 2.80 (min)
1.52 (max) 1.15 (min)
2.79 (max) 2.04 (min)
14.27(max) 12.70 (min)
5.33 (max) 4.83 (min)
0.96 (max) 0.64 (min)
2.66 (max) 2.42 (min)
0.61 (max) 0.36 (min)
1. Gate 2. Drain 3. Source

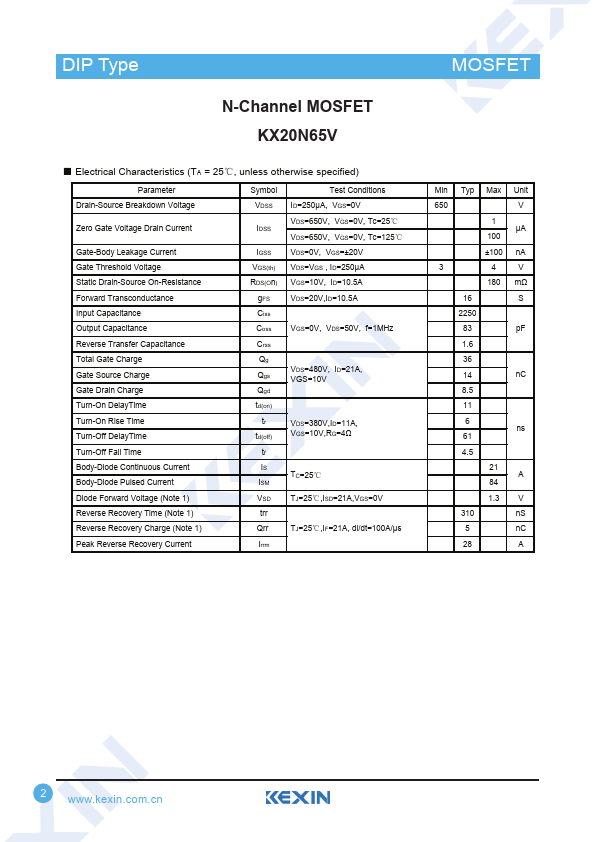

- Absolute Maximum Ratings (TC = 25℃)
Drain-Source Voltage Gate-Source Voltage
Parameter
Symbol VDS VGS
Continuous Drain Current
TC = 25℃ ID
TC = 100℃
Pulsed Drain Current (Note 1)
Avalanche Current (Note 1)
Single Pulse Avalanche Energy (Note 2)

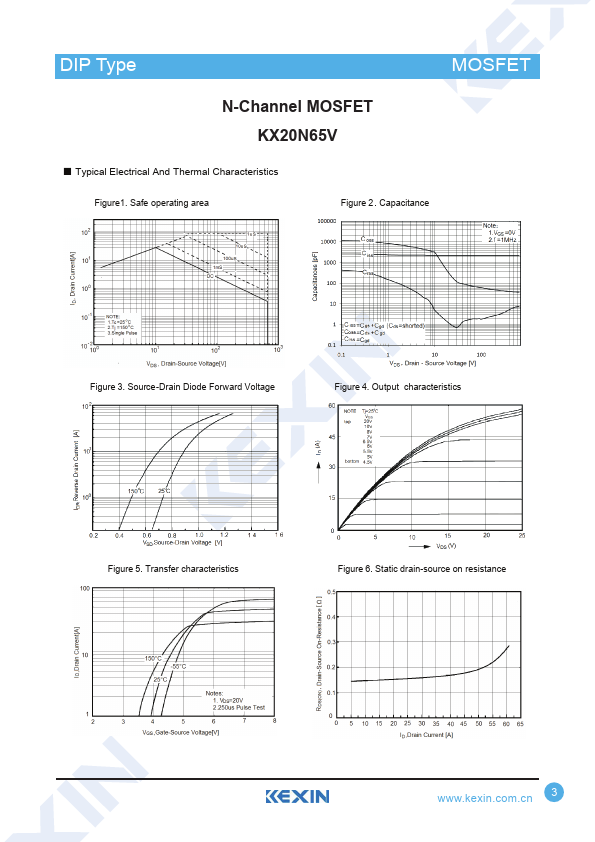

Repetitive Avalanche energy, t AR limited by Tjmax (Note...
