LM78L09 - Three-Terminal Positive Voltage Regulator

Features

  • Maximum Output current IO: 0.1A Output Voltage VO: 9V Continuous Total Dissipation PD: 0.5W (Ta = 25 ) 1.70 0.1 0.42 0.1 0.46 0.1 Absolute Maximum Ratings (Operating temperature range applies unless otherwise specified) Parameter Input Voltage Operating Junction Temperature Range Storage Temperature Range Symbol Rating Unit VI 30 V TOPR -55 +125 TSTG -55 +150 1.OUT 2.GND 3.IN Electrical Characteristics (VI=16V, IO=40mA,CI=0.33 F,CO=0.1 F, unless otherwise specified) Parameter O.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LM78L09 3-Terminal Positive Regulators National Semiconductor
LM78L09 3-TERMINAL 0.1A POSITIVE VOLTAGE REGULATORS Boca
LM78L09 100-mA Fixed Output Linear Regulator Texas Instruments
LM78L09 3-Terminal 0.1A Positive Voltage Regulator Fairchild Semiconductor
LM78L09 positive voltage regulator Bay Linear

Other Datasheets by Kexin Semiconductor

Part Number Description
LM78L05 Three Terminal Positive Voltage Regulator
LM78L06 Three-Terminal Positive Voltage Regulator
LM78L08 Three-Terminal Positive Voltage Regulator
LM78L10 Three-Terminal Positive Voltage Regulator
LM78L12 Three-Terminal Positive Voltage Regulator

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

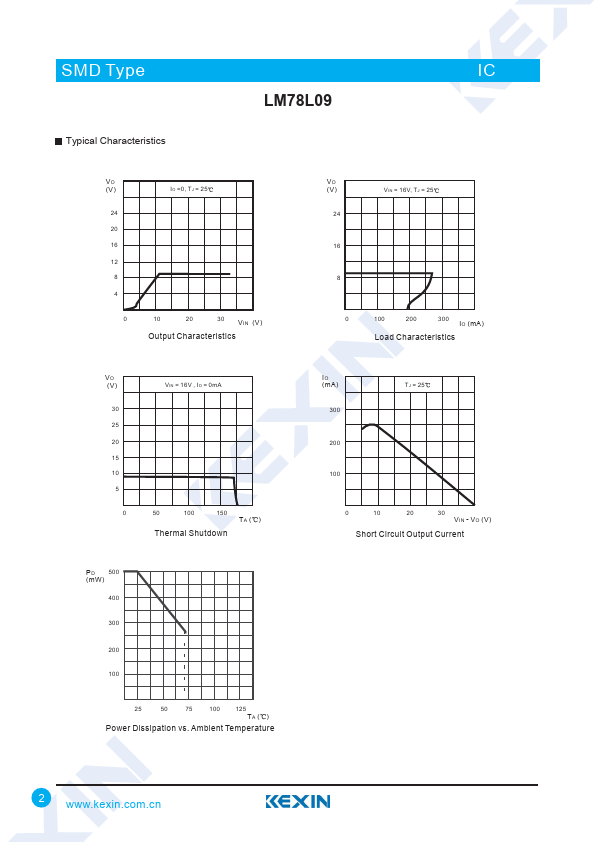

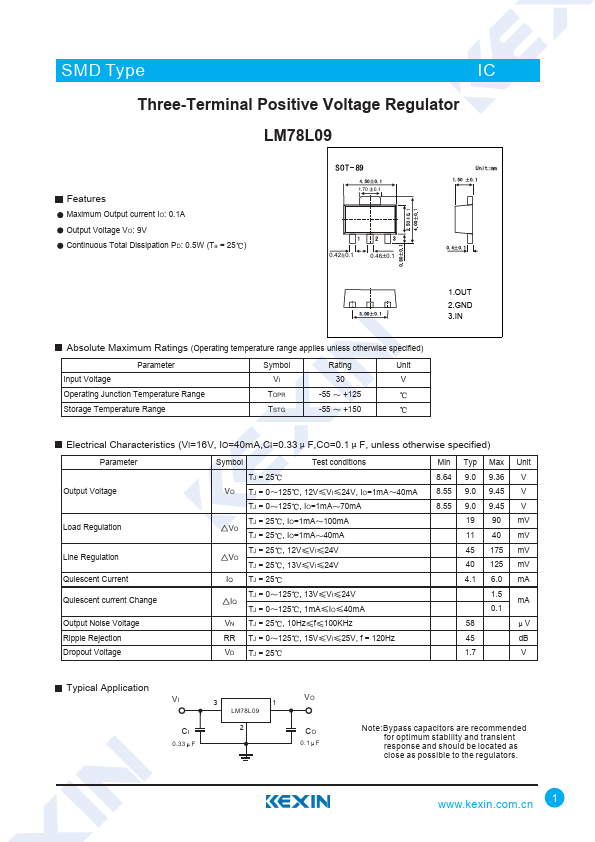

SMD Type IC Three-Terminal Positive Voltage Regulator LM78L09 Features Maximum Output current IO: 0.1A Output Voltage VO: 9V Continuous Total Dissipation PD: 0.5W (Ta = 25 ) 1.70 0.1 0.42 0.1 0.46 0.1 Absolute Maximum Ratings (Operating temperature range applies unless otherwise specified) Parameter Input Voltage Operating Junction Temperature Range Storage Temperature Range Symbol Rating Unit VI 30 V TOPR -55 +125 TSTG -55 +150 1.OUT 2.GND 3.IN Electrical Characteristics (VI=16V, IO=40mA,CI=0.33 F,CO=0.
