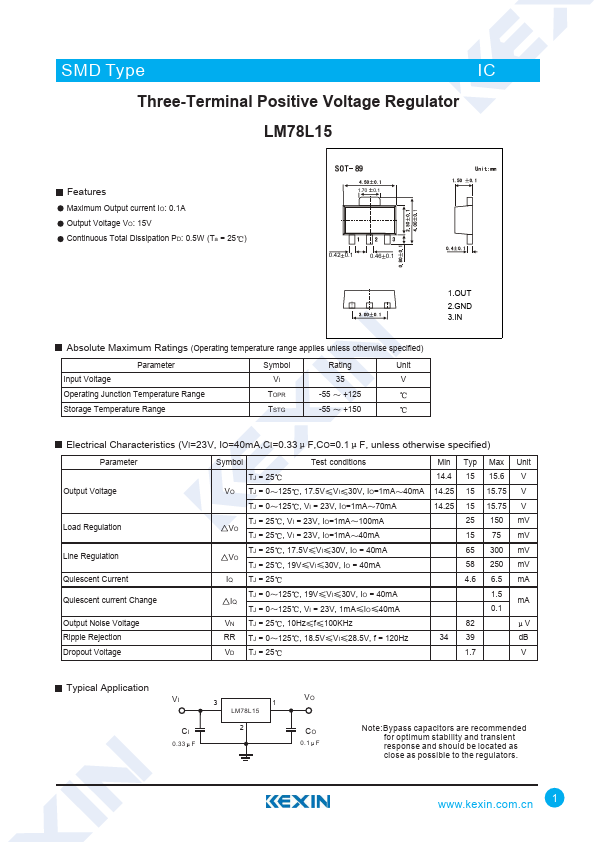

Kexin Electronics LM78L15
Three-Terminal Positive Voltage Regulator
| Part No. | LM78L15 |
|---|---|
| Datasheet | LM78L15 Download |
| Manufacturer | Kexin Electronics |
| Description | Three-Terminal Positive Voltage Regulator |
| Buy | Stock & Price |
FEATURES
Maximum Output current IO: 0.1A Output Voltage VO: 15V Continuous Total Dissipation PD: 0.5W (Ta = 25 ) 1.70 0.1 0.42 0.1 0.46 0.1ABSOLUTE MAXIMUM RATINGS
(Operating temperature range applies unless otherwise specified) Parameter Input Voltage Operating Junction Temperature Range Storage Temperature Range Symbol Rating Unit VI 35 V TOPR -55 +125 TSTG -55 +150 1.OUT 2.GND 3.INELECTRICAL CHARACTERISTICS
(VI=23V, IO=40mA,CI=0.33 F,CO=0.1 F, unless otherwise specified) Parameter Output Voltage Load Regulation Line Regulation Quiescent Current Quiescent current Change Output Noise Voltage Ripple Rejection Dropout Voltage Symbol Test conditions Min Typ Max Unit TJ = 25 14.4 15 15.6 V VO TJ = 0 125 , 17.5V VI 30V, IO=1mA 40mA 14.25 15 15.75 V TJ = 0 125 , VI = 23V, IO=1mA 70mA 14.25 15 15.75 V TJ = 25 , VI = 23V, IO=1mA 100mA VO TJ = 25 , VI = 23V, IO=1mA 40mA 25 150 mV 15 75 mV TJ = 25 , 17.5V VI 30V, IO = 40mA VO TJ = 25 , 19V VI 30V, IO = 40mA 65 300 mV 58 250 mV IQ TJ = 25 4.6...
