LM79L15 - Three-Terminal Negative Voltage Regulator

Features

  • Maximum Output current IOM: 0.1 A Output voltage Vo: -15V Continuous total dissipation PD: 0.5 W 1.70 0.1 0.42 0.1 0.46 0.1 Absolute Maximum Ratings Ta = 25 Parameter Input Voltage Operating Junction Temperature Range Storage Temperature Range Symbol Rating Unit Vl -35 V TOPR -55 to +125 TSTG -55 to +150 1.GND 2.IN 3.OUT Electrical Characteristics (VI=-23V,Io=40mA,0.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LM79L15 100mA Negative Voltage Regulator Bay Lineer
LM79L15 3-TERMINAL 0.1A NEGATIVE VOLTAGE REGULATOR HTC
LM79L15 3-Terminal Negative Regulators Texas Instruments
LM79L15AC 3-Terminal Negative Regulators National Semiconductor
LM79L15AC 3-Terminal Negative Regulators Texas Instruments

Other Datasheets by Kexin Semiconductor

Part Number Description
LM79L12 Three-Terminal Negative Voltage Regulator
LM79L05 Three-Terminal Negative Voltage Regulator
LM79L06 Three-Terminal Negative Voltage Regulator
LM79L08 Three-Terminal Negative Voltage Regulator
LM79L09 Three-Terminal Negative Voltage Regulator

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

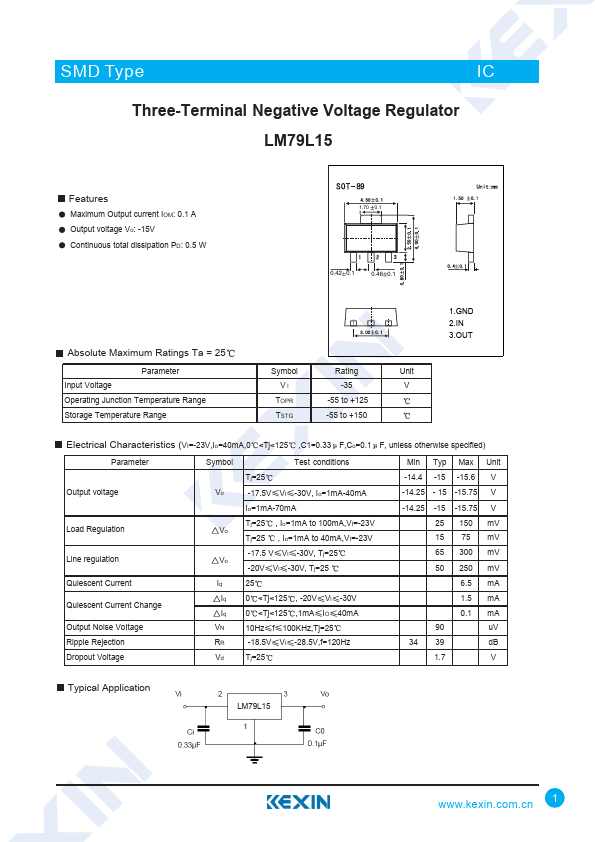

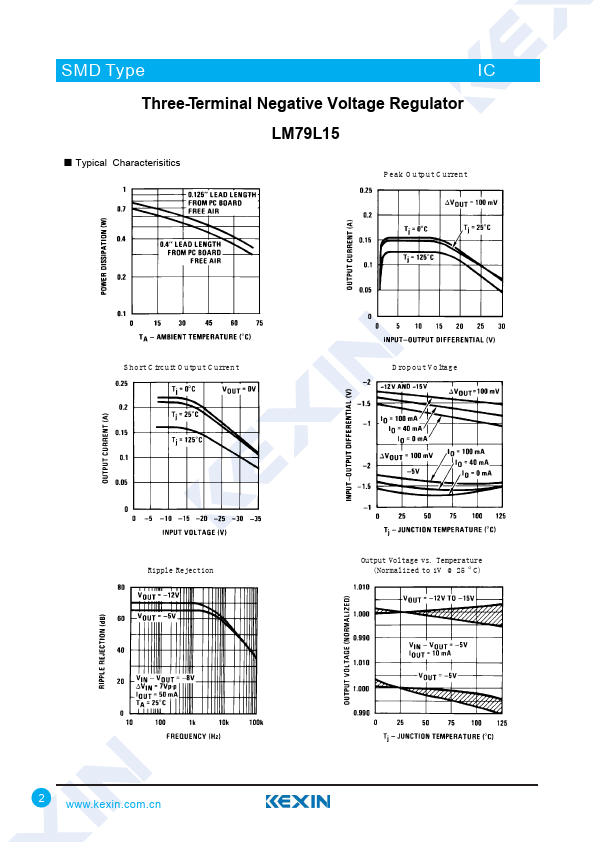

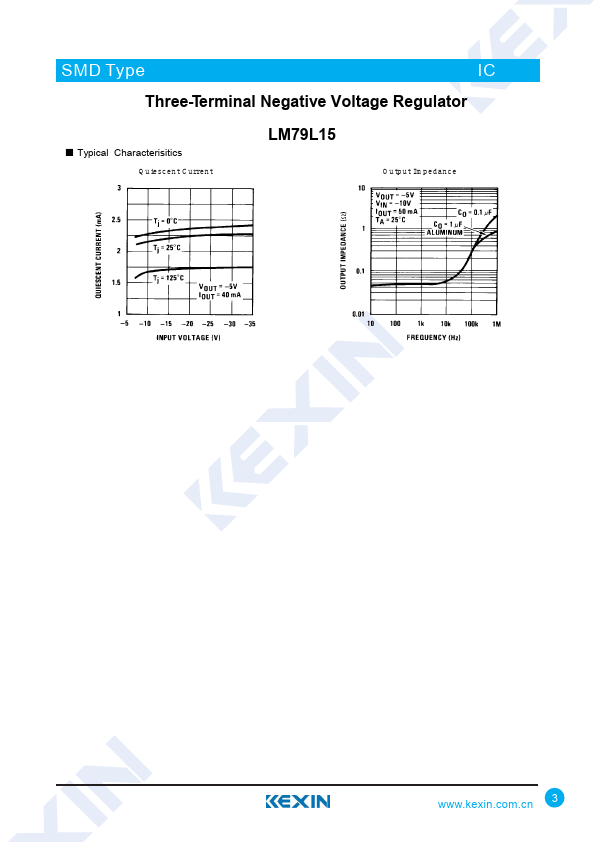

SMD Type IC Three-Terminal Negative Voltage Regulator LM79L15 Features Maximum Output current IOM: 0.1 A Output voltage Vo: -15V Continuous total dissipation PD: 0.5 W 1.70 0.1 0.42 0.1 0.46 0.1 Absolute Maximum Ratings Ta = 25 Parameter Input Voltage Operating Junction Temperature Range Storage Temperature Range Symbol Rating Unit Vl -35 V TOPR -55 to +125 TSTG -55 to +150 1.GND 2.IN 3.OUT Electrical Characteristics (VI=-23V,Io=40mA,0
