LMB1117 - 1A Low Dropout Positive Adjustable or Fixed-Mode Regulator

Features

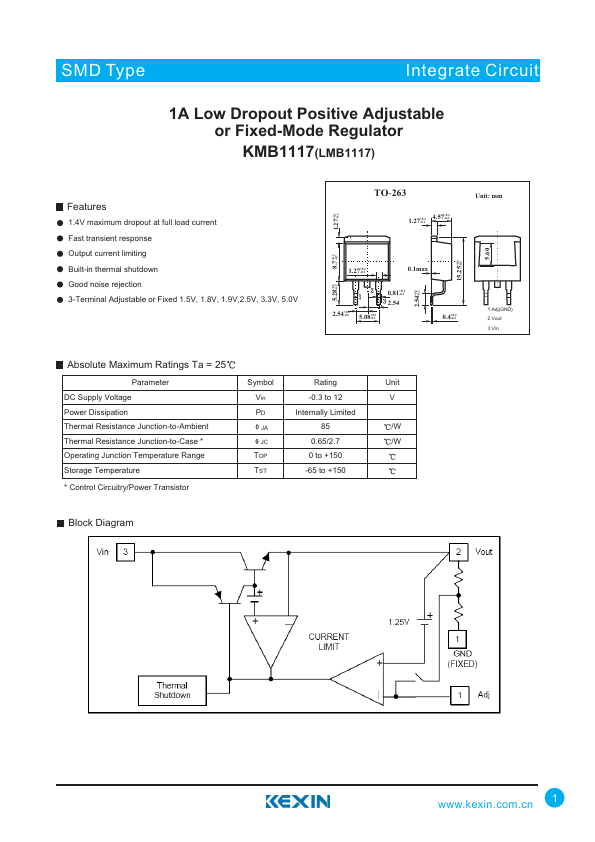

  • 1.4V maximum dropout at full load current Fast transient response Output current limiting Built-in thermal shutdown Good noise rejection 3-Terminal Adjustable or Fixed 1.5V, 1.8V, 1.9V,2.5V, 3.3V, 5.0V +0.2 5.28 -0.2 +0.2 8.7 -0.2 TO-263 +0.2 4.57 +0.1 -0.2 1.27-0.1 Unit: mm +0.1 1.27 -0.1 +0.2 2.54 -0.2 15.25-+00..22 5.60 1.27+0.1 -0.1 0.1max 2.54+0.2 -0.2 5.08+0.1 -0.1 0.81+0.1 -0.1 2.54 0.4+0.2 -0.2 1 Adj(GND) 2 Vout 3 Vin Absolute Maximum Ratings Ta = 25 Parameter DC Suppl.
