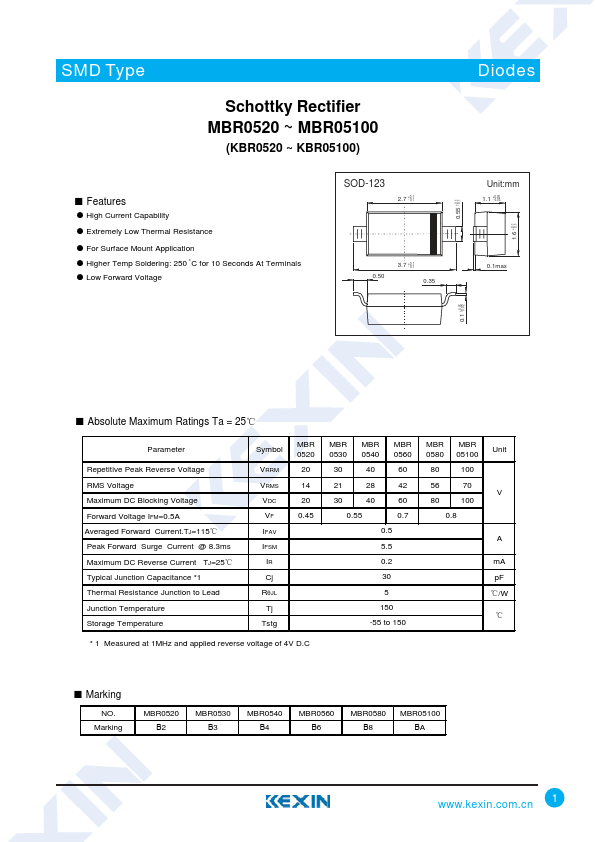

MBR05100
MBR05100 is Schottky Rectifier manufactured by Kexin Semiconductor.
- Part of the MBR0520 comparator family.
- Part of the MBR0520 comparator family.
Features
- High Current Capability
- Extremely Low Thermal Resistance
- For Surface Mount Application
- Higher Temp Soldering: 250 o C for 10 Seconds At Terminals
- Low Forward Voltage
SOD-123
2.7 +0.1
- 0.1
3.7 +0.1
- 0.1 0.35
+0.1 0.55
- 0.1
+0.1 1.6
- 0.1
Diodes
Unit:mm
1.1 +0.05
- 0.05 0.1max
+0.05 0.1 -0.02
- Absolute Maximum Ratings Ta = 25℃
Parameter
Repetitive Peak Reverse Voltage RMS Voltage Maximum DC Blocking Voltage Forward Voltage IFM=0.5A Averaged Forward Current.TJ=115℃ Peak Forward Surge Current @ 8.3ms Maximum DC Reverse Current TJ=25℃ Typical Junction Capacitance
- 1 Thermal Resistance Junction to Lead Junction Temperature Storage Temperature
Symbol
VRRM VRMS VDC
VF IFAV IFSM IR Cj RθJL Tj Tstg
MBR 0520
20 14 20 0.45
MBR MBR MBR 0530 0540...
