Kexin Electronics MBR0530
Schottky Rectifier
| Part No. | MBR0530 |
|---|---|
| Datasheet | MBR0530 Download |
| Manufacturer | Kexin Electronics |
| Description | Schottky Rectifier |
| Buy | Stock & Price |

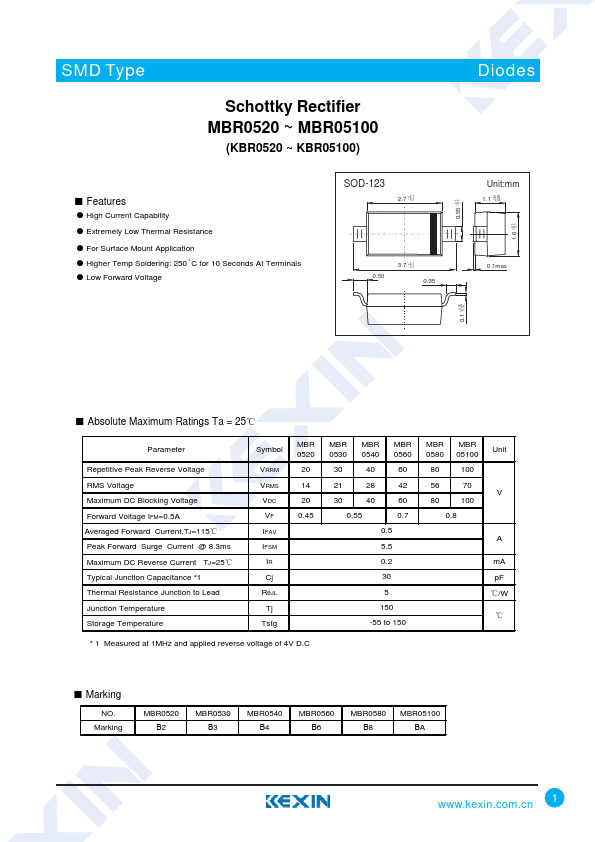

FEATURES
● High Current Capability● Extremely Low Thermal Resistance
● For Surface Mount Application
● Higher Temp Soldering: 250 oC for 10 Seconds At Terminals
● Low Forward Voltage SOD-123 2.7 +0.1 - 0.1 0.50 3.7 +0.1 - 0.1 0.35 +0.1 0.55 - 0.1 +0.1 1.6 - 0.1 Diodes Unit:mm 1.1 +0.05 - 0.05 0.1max +0.05 0.1 -0.02
●
ABSOLUTE MAXIMUM RATINGS
Ta = 25℃ Parameter Repetitive Peak Reverse Voltage RMS Voltage Maximum DC Blocking Voltage Forward Voltage IFM=0.5A Averaged Forward Current.TJ=115℃ Peak Forward Surge Current @ 8.3ms Maximum DC Reverse Current TJ=25℃ Typical Junction Capacitance *1 Thermal Resistance Junction to Lead Junction Temperature Storage Temperature Symbol VRRM VRMS VDC VF IFAV IFSM IR Cj RθJL Tj Tstg MBR 0520 20 14 20 0.45 MBR MBR MBR 0530 0540 0560 30 40 60 21 28 42 30 40 60 0.55 0.7 0.5 5.5 0.2 30 5 150 -55 to 150 MBR 0580 MBR 05100 Unit 80 100 56 70 V 80 100 0.8 A mA pF ℃/W ℃ * 1 Measured at 1MHz and applied reverse voltage of 4V D.C● Marking NO. Marking MBR0520 B2 M...
