Kexin Electronics MBRA140
Schottky Diodes
| Part No. | MBRA140 |
|---|---|
| Datasheet | MBRA140 Download |
| Manufacturer | Kexin Electronics |
| Description | Schottky Diodes |
| Buy | Stock & Price |

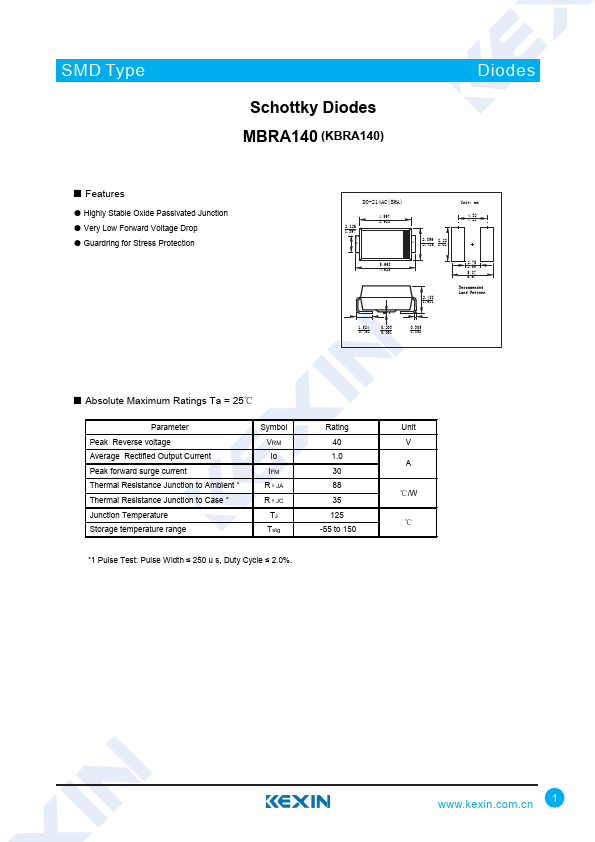

FEATURES
● Highly Stable Oxide Passivated Junction● Very Low Forward Voltage Drop
● Guardring for Stress Protection DO-214AC(SMA) 2.126 1.397 2 4.597 3.988 2.896 2.22 1 2.489 2.02 Unit: mm 4.32 4.12 5.668 4.925 2.438 1.981 2.75 2.55 5.87 5.67 Recommended Land Pattern 1.524 0.762 0.203 0.051 0.305 0.152
●
ABSOLUTE MAXIMUM RATINGS
Ta = 25℃ Parameter Peak Reverse voltage Average Rectified Output Current Peak forward surge current Thermal Resistance Junction to Ambient * Thermal Resistance Junction to Case * Junction Temperature Storage temperature range Symbol VRM Io IFM RθJA RθJC TJ Tstg *1 Pulse Test: Pulse Width ≤ 250 u s, Duty Cycle ≤ 2.0%. Rating 40 1.0 30 88 35 125 -55 to 150 Unit V A ℃/W ℃ 1 SMD Type Schottky Diodes MBRA140 (KBRA140) Diodes●

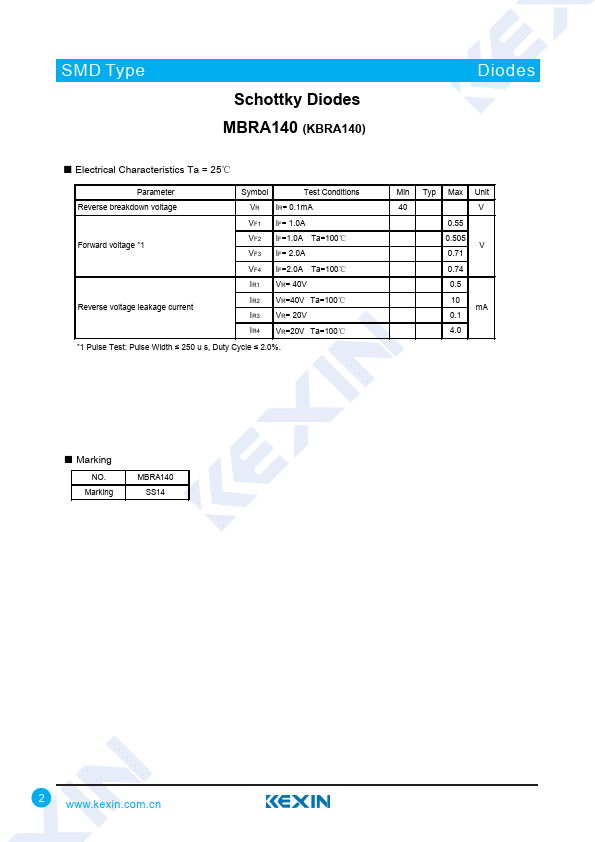

ELECTRICAL CHARACTERISTICS
Ta = 25℃ Parameter Symbol Test Conditions Reverse breakdown voltage VR IR= 0.1mA VF1 IF= 1.0A Forward voltage *1 VF2 IF=1.0A Ta=100℃ VF3 IF= 2.0A VF4 IF=2.0A Ta=100℃ IR1 VR= 40V Reverse voltage leakage current IR2 VR=40V Ta=100℃ IR3 VR= 20V IR4 VR=20V Ta=100℃ *1 Pulse Test: Pulse Width ≤ 250 u s, Duty Cycle ≤ 2.0%.
