MBRD1040CT
MBRD1040CT is Schottky Barrier Rectifier manufactured by Kexin Semiconductor.

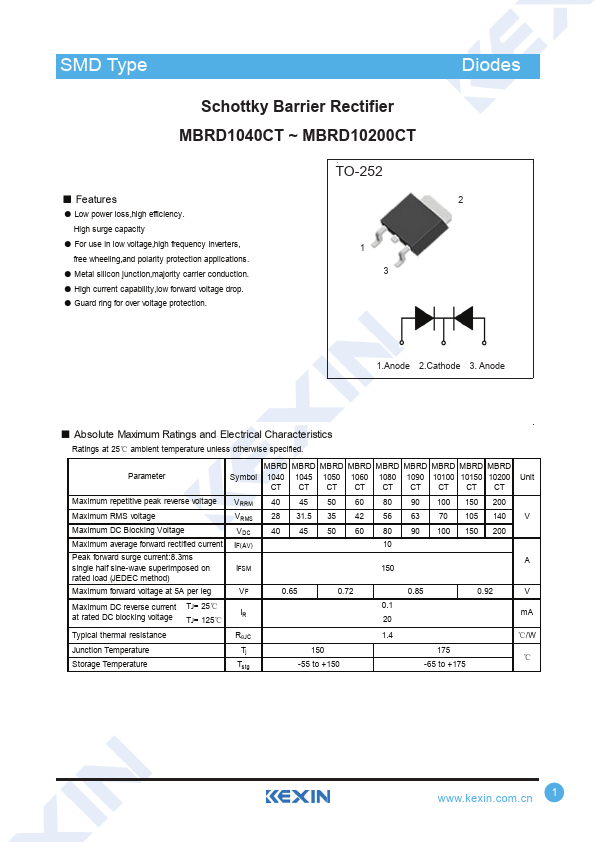

Features
- Low power loss,high efficiency. High surge capacity
- For use in low voltage,high frequency inverters, free wheeling,and polarity protection applications.
- Metal silicon junction,majority carrier conduction.
- High current capability,low forward voltage drop.
- Guard ring for over voltage protection.

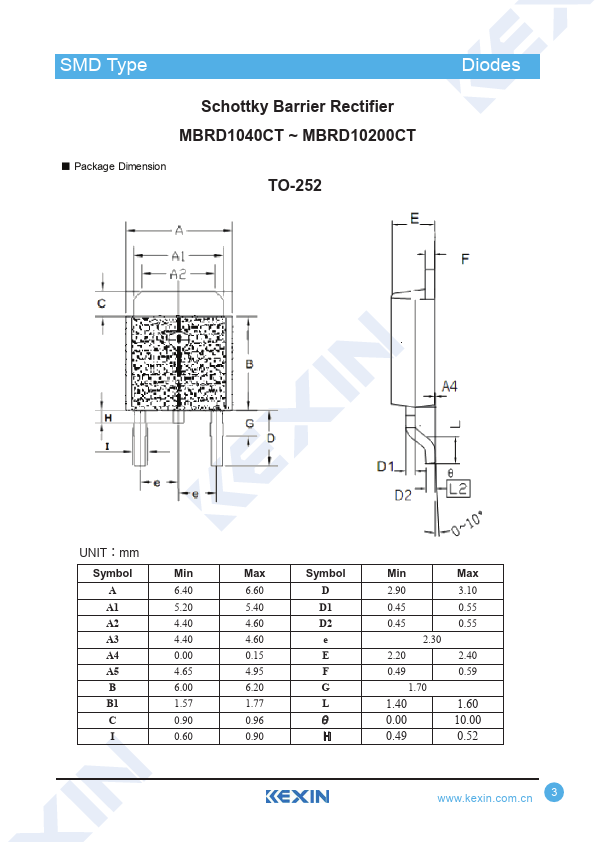

TO-252
1 3
Diodes
1.Anode 2.Cathode 3. Anode
- Absolute Maximum Ratings and Electrical Characteristics
Ratings at 25℃ ambient temperature unless otherwise specified.
Parameter
MBRD MBRD MBRD MBRD MBRD MBRD MBRD MBRD MBRD Symbol 1040 1045 1050 1060 1080 1090 10100 10150 10200 Unit
CT CT CT CT CT CT CT CT CT
Maximum repetitive peak reverse voltage VRRM 40 45 50 60 80 90 100 150 200
Maximum RMS voltage
VRMS
28 31.5 35
70 105 140
Maximum DC Blocking Voltage
40 45 50
90 100 150 200
Maximum average forward rectified current IF(AV)
Peak forward surge current:8.3ms
A single half sine-wave superimposed on
IFSM
150 rated load (JEDEC method)
Maximum forward voltage at 5A per leg
Maximum DC reverse current TJ= 25℃ at rated DC blocking voltage TJ=...
