MBRD1060CT
MBRD1060CT is Schottky Barrier Rectifier manufactured by Kexin Semiconductor.
- Part of the MBRD1040CT comparator family.
- Part of the MBRD1040CT comparator family.
SMD Type

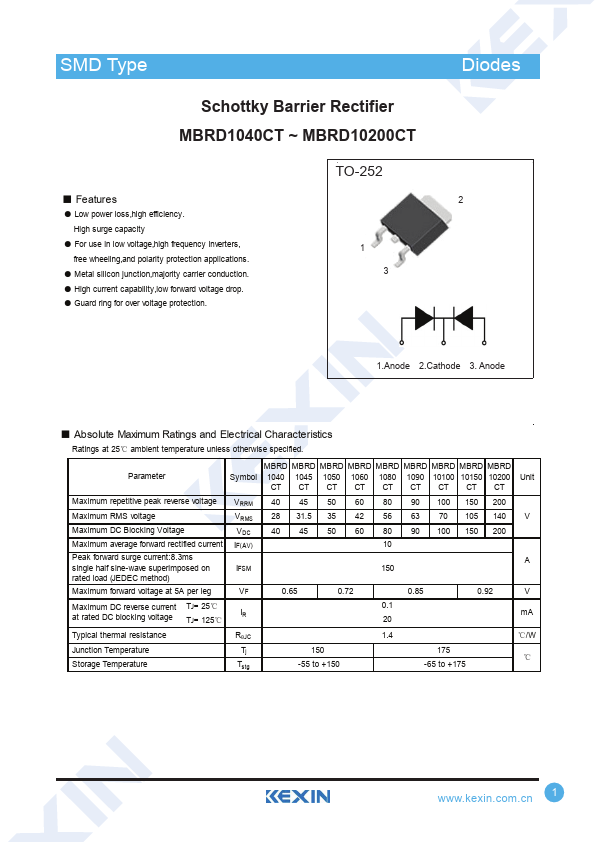

Schottky Barrier Rectifier MBRD1040CT ~ MBRD10200CT
- Features
- Low power loss,high efficiency. High surge capacity
- For use in low voltage,high frequency inverters, free wheeling,and polarity protection applications.
- Metal silicon junction,majority carrier conduction.
- High current capability,low forward voltage drop.
- Guard ring for over voltage protection.
TO-252
1 3
Diodes
1.Anode 2.Cathode 3. Anode
-...
