MMBT3904 Datasheet NPN Transistors

Manufacturer: Kexin Semiconductor

Overview: SMD Type NPN Transistors KMBT3904(MMBT3904) Transistors.

Datasheet Details

Part number	MMBT3904
Manufacturer	Kexin Semiconductor
File Size	68.02 KB
Description	NPN Transistors
Datasheet	MMBT3904-Kexin.pdf

Key Features

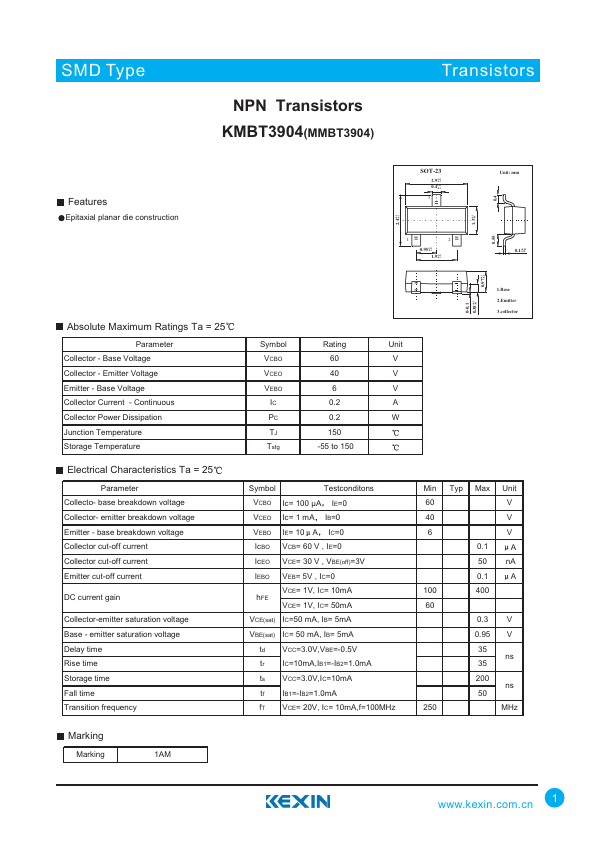

Epitaxial planar die construction +0.1 2.4 -0.1 SOT-23 2.9+0.1 -0.1 0.4+0.1 -0.1 3 1 2 0.95+0.1 -0.1 1.9+0.1 -0.1 +0.1 1.3 -0.1 0.55 0.4 Unit: mm 0.1+0.05 -0.01 +0.1 0.97 -0.1 Absolute Maximum Ratings Ta = 25 Parameter Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Collector Current - Continuous Collector Power Dissipation Junction Temperature Storage Temperature Electrical Characteristics Ta = 25 Parameter Collecto- base breakdown voltage Collector- emitt.
