NFT1N60 - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 600V.
  • ID = 0.4 A (VGS = 10V).
  • RDS(ON) ＜ 7.9Ω (VGS = 10V).
  • High switching speed.
  • Improved dv/dt capability N-Channel MOSFET NFT1N60 SOT-223 MOSFET 6.50±0.2 3.00±0.1 4 10b Unit:mm 7.0±0.3 3.50±0.2 0.75 (min) 1.6 ± 0.1 1.80 (max) 1 2 3 2.30 (typ) 4.60 (typ) 0.84 (max) 0.66 (min) 0.250 Gauge Plane 1.Gate 2.Drain 3.Source 4.Drain 0.02 ~ 0.1.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by Kexin Semiconductor

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

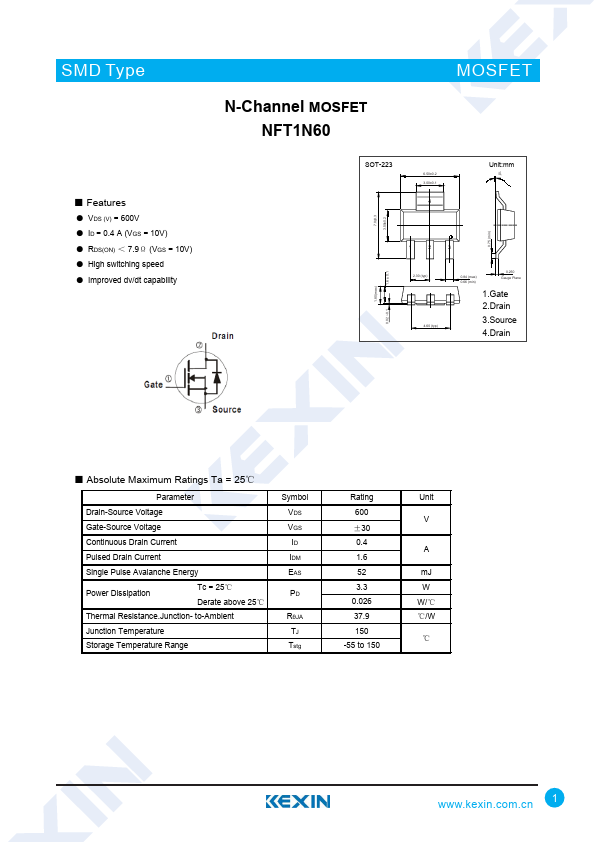

SMD Type ■ Features ● VDS (V) = 600V ● ID = 0.4 A (VGS = 10V) ● RDS(ON) ＜ 7.9Ω (VGS = 10V) ● High switching speed ● Improved dv/dt capability N-Channel MOSFET NFT1N60 SOT-223 MOSFET 6.50±0.2 3.00±0.1 4 10b Unit:mm 7.0±0.3 3.50±0.2 0.75 (min) 1.6 ± 0.1 1.80 (max) 1 2 3 2.30 (typ) 4.60 (typ) 0.84 (max) 0.66 (min) 0.250 Gauge Plane 1.Gate 2.Drain 3.Source 4.Drain 0.02 ~ 0.1 ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current Single Pulse Avalanche Energy Power Dissipation Tc = 25℃ Derate above 25℃ Thermal Resistance.Junction- to-Ambient Junction Temperature Storage Temperature Range Symbol VDS VGS ID IDM EAS PD RθJA TJ Tstg Rating 600 ±30 0.4 1.6 52 3.3 0.026 37.
