NTD6N15 - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 150V.
  • ID = 6 A (VGS = 10V).
  • RDS(ON) ＜ 300mΩ (VGS = 10V).
  • Silicon Gate for Fast Switching Speeds.
  • Low Drive Requirement D + 9.70 0.2 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 4 + 1.50 0.15 -0.15 2.30 +0.1 -0.1 0.50 +0.8 -0.7 Unit: mm + 5.55 0.15 -0.15 + 0.15 0 .5 0 -0.15 +0 1.50 .28 -0.1 0.80+0.1 -0.1 0.127 m ax 2.3 4 .60 +0.15 -0.15 0.60+ 0.1 - 0.1 +0 2.65 .25 -0.1 1 Gate 2 Drain 3 Source 4 Drain G S.
  • Absolute Maximum Ratings Ta = 25℃ Dr.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NTD6N40 Power MOSFET ON Semiconductor
NTD60 HIGH VOLTAGE-HIGH CURRENT SILICON RECTIFIERS EDI
NTD600N80S3Z 800V 8A N-Channel Power MOSFET ON Semiconductor
NTD60N02R Power MOSFET ON
NTD60N03 Power MOSFET ON Semiconductor

Other Datasheets by Kexin Semiconductor

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

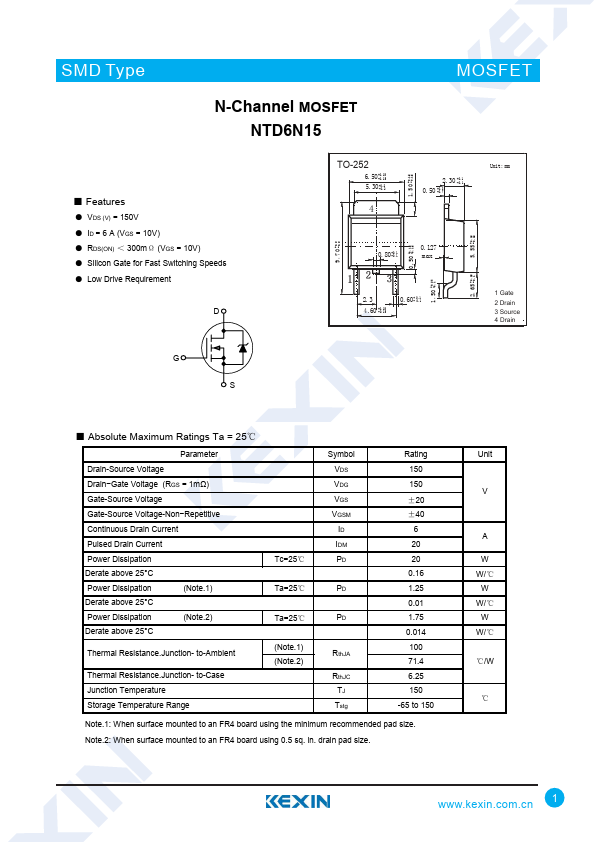

SMD Type MOSFET N-Channel MOSFET NTD6N15 ■ Features ● VDS (V) = 150V ● ID = 6 A (VGS = 10V) ● RDS(ON) ＜ 300mΩ (VGS = 10V) ● Silicon Gate for Fast Switching Speeds ● Low Drive Requirement D + 9.70 0.2 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 4 + 1.50 0.15 -0.15 2.30 +0.1 -0.1 0.50 +0.8 -0.7 Unit: mm + 5.55 0.15 -0.15 + 0.15 0 .5 0 -0.15 +0 1.50 .28 -0.1 0.80+0.1 -0.1 0.127 m ax 2.3 4 .60 +0.15 -0.15 0.60+ 0.1 - 0.1 +0 2.65 .25 -0.1 1 Gate 2 Drain 3 Source 4 Drain G S ■ Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Parameter Drain−Gate Voltage (RGS = 1mΩ) Gate-Source Voltage Gate-Source Voltage-Non−Repetitive Continuous Drain Current Pulsed Drain Current Power Dissipation Derate above 25°C Power Dissipation (Note.
