NTMS10P02R2 - P-Channel MOSFET

Key Features

  • s.
  • VDS (V) =-20V.
  • ID =-10 A (VGS =-10V).
  • RDS(ON) ＜ 14 mΩ (VGS =-4.5V).
  • RDS(ON) ＜ 20mΩ (VGS =-2.5V).
  • Diode Exhibits High Speed, Soft Recovery D G S +0.04 0.21 -0.02 SOP-8 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Ta = 25℃ Ta = 70℃ Maximum Operating Drain Current Pulsed Drain Current (Note.1) Power Dissipation.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NTMS10P02R2 P-Channel Power MOSFET On Semiconductor
NTMS3P03R2 P-Channel Power MOSFET ON Semiconductor
NTMS4101PR2G P-Channel 20V MOSFET VBsemi
NTMS4107N Power MOSFET ON Semiconductor
NTMS4117N Power MOSFET ON Semiconductor

Other Datasheets by Kexin Semiconductor

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

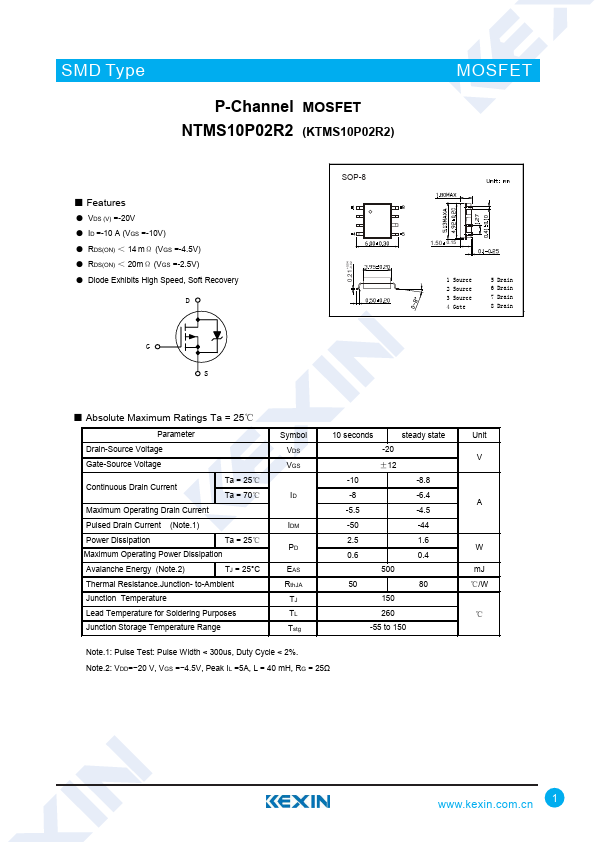

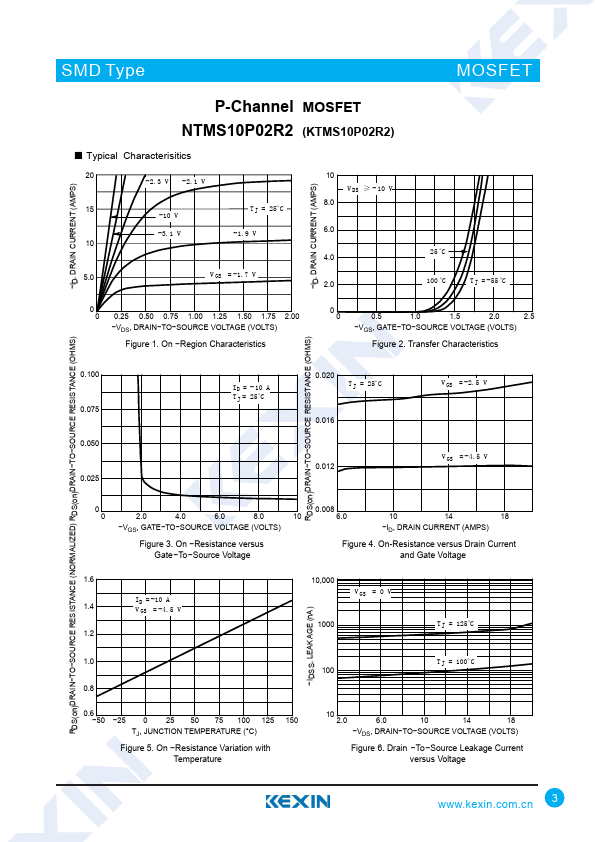

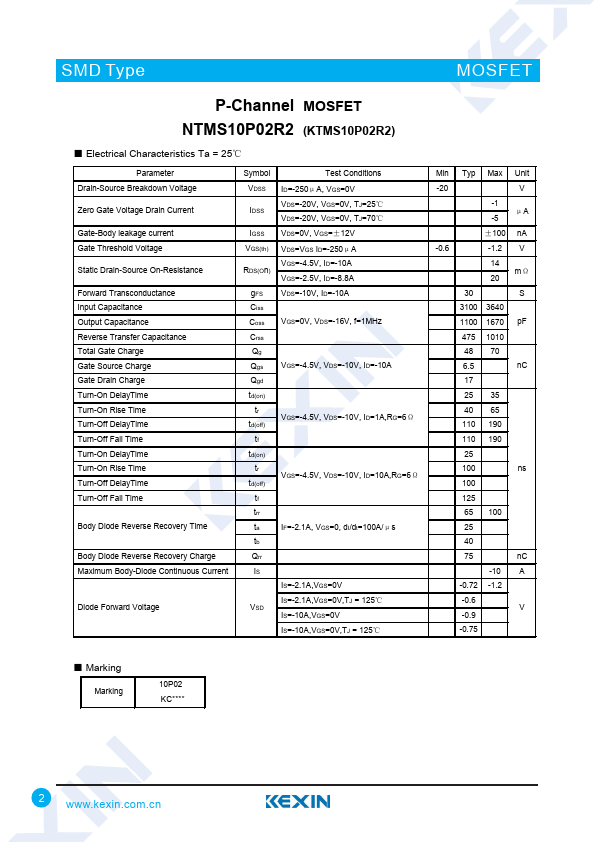

SMD Type P-Channel MOSFET NTMS10P02R2 (KTMS10P02R2) MOSFET ■ Features ● VDS (V) =-20V ● ID =-10 A (VGS =-10V) ● RDS(ON) ＜ 14 mΩ (VGS =-4.5V) ● RDS(ON) ＜ 20mΩ (VGS =-2.5V) ● Diode Exhibits High Speed, Soft Recovery D G S +0.04 0.21 -0.02 SOP-8 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Ta = 25℃ Ta = 70℃ Maximum Operating Drain Current Pulsed Drain Current (Note.1) Power Dissipation Ta = 25℃ Maximum Operating Power Dissipation Avalanche Energy (Note.2) TJ = 25°C Thermal Resistance.
