NTR4003N - N-Channel Enhancement MOSFET

Key Features

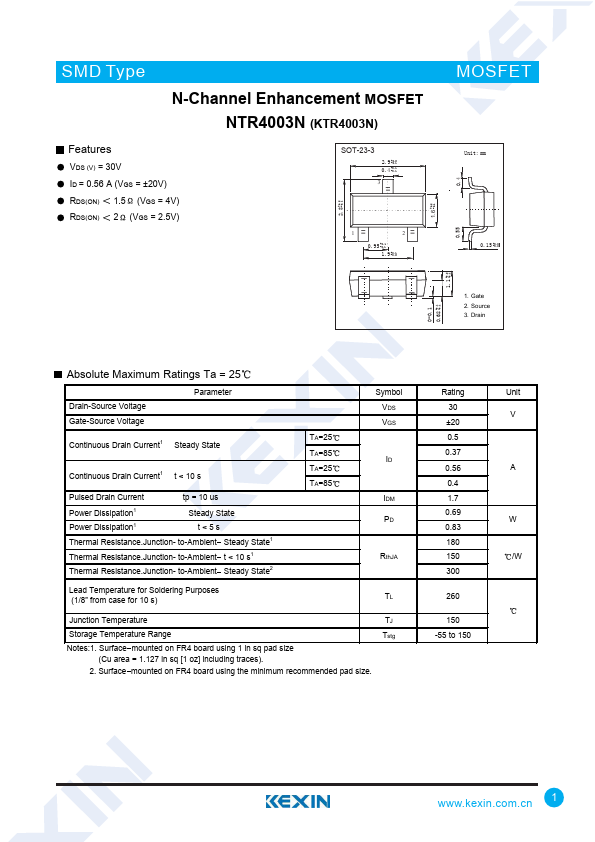

  • VDS (V) = 30V ID = 0.56 A (VGS = ±20V) RDS(ON) 1.5 (VGS = 4V) RDS(ON) 2 (VGS = 2.5V) +0.2 2.8 -0.1 SOT-23-3 2.9 +0.2 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.2 +0.2 1.6 -0.1 0.55 0.4 MOSFET Unit: mm 0.15 +0.02 -0.02 +0.2 1.1 -0.1 1. Gate 2. Source 3. Drain 0-0.1 +0.1 0.68 -0.1 Absolute Maximum Ratings Ta = 25 Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current1 Steady State Continuous Drain Current1 t < 10 s Pulsed Drain Current tp = 10 us P.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NTR4003N 30V 0.56A N-Channel MOSFET ON Semiconductor
NTR4101P P-Channel Power MOSFET ON Semiconductor
NTR4170N Power MOSFET ON Semiconductor
NTR4171P Power MOSFET ON Semiconductor
NTR4501N N-Channel Power MOSFET ON Semiconductor

Other Datasheets by Kexin Semiconductor

Part Number Description
NTR4170NT N-Channel MOSFET
NTR4501NT1G N-Channel MOSFET
NTR5105P P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

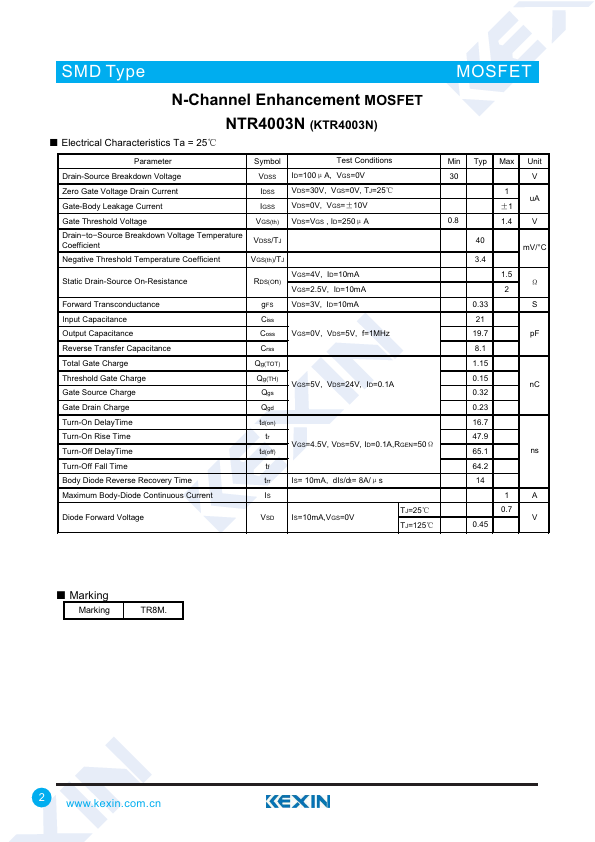

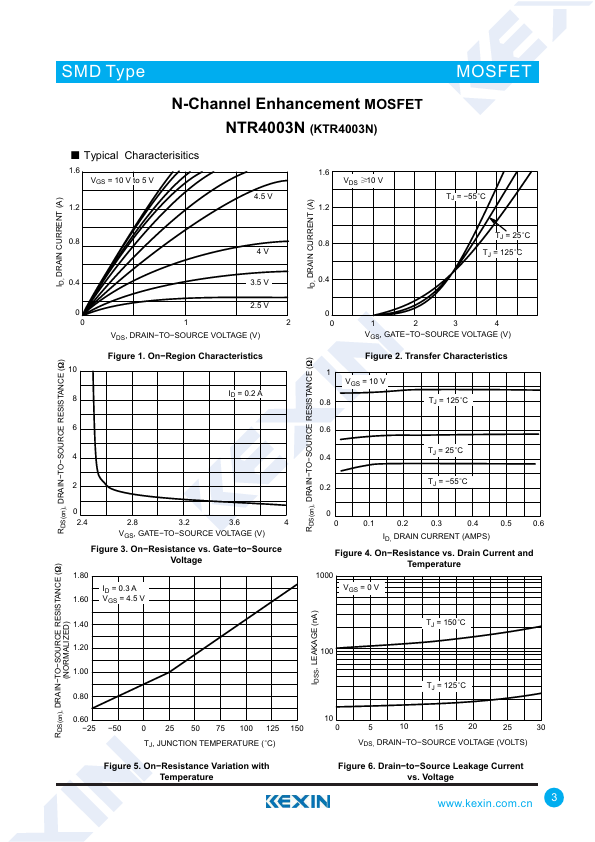

SMD Type N-Channel Enhancement MOSFET NTR4003N (KTR4003N) Features VDS (V) = 30V ID = 0.56 A (VGS = ±20V) RDS(ON) 1.5 (VGS = 4V) RDS(ON) 2 (VGS = 2.5V) +0.2 2.8 -0.1 SOT-23-3 2.9 +0.2 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.2 +0.2 1.6 -0.1 0.55 0.4 MOSFET Unit: mm 0.15 +0.02 -0.02 +0.2 1.1 -0.1 1. Gate 2. Source 3. Drain 0-0.1 +0.1 0.68 -0.1 Absolute Maximum Ratings Ta = 25 Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current1 Steady State Continuous Drain Current1 t < 10 s Pulsed Drain Current tp = 10 us Power Dissipation1 Steady State Power Dissipation1 t<5s Thermal Resistance.Junction- to-Ambient Steady State1 Thermal Resistance.Junction- to-Ambient t < 10 s1 Thermal Resistance.
