NTR4101P - P-Channel MOSFET

Key Features

  • s.
  • VDS (V) =-20V.
  • ID =-3.2 A.
  • RDS(ON) ＜ 85mΩ (VGS =-4.5V).
  • RDS(ON) ＜ 120mΩ (VGS =-2.5V).
  • RDS(ON) ＜ 210mΩ (VGS =-1.8V) S G +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 1. Gate 2. Source 3. Drain 0-0.1 +0.1 0.38 -0.1 D.
  • Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current @Steady State (N.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NTR4101P P-Channel Power MOSFET ON Semiconductor
NTR4170N Power MOSFET ON Semiconductor
NTR4171P Power MOSFET ON Semiconductor
NTR4003N 30V 0.56A N-Channel MOSFET ON Semiconductor
NTR4501N N-Channel Power MOSFET ON Semiconductor

Other Datasheets by Kexin Semiconductor

Part Number Description
NTR4170NT N-Channel MOSFET
NTR4003N N-Channel Enhancement MOSFET
NTR4501NT1G N-Channel MOSFET
NTR1P02LT1 P-Channel MOSFET
NTR5105P P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

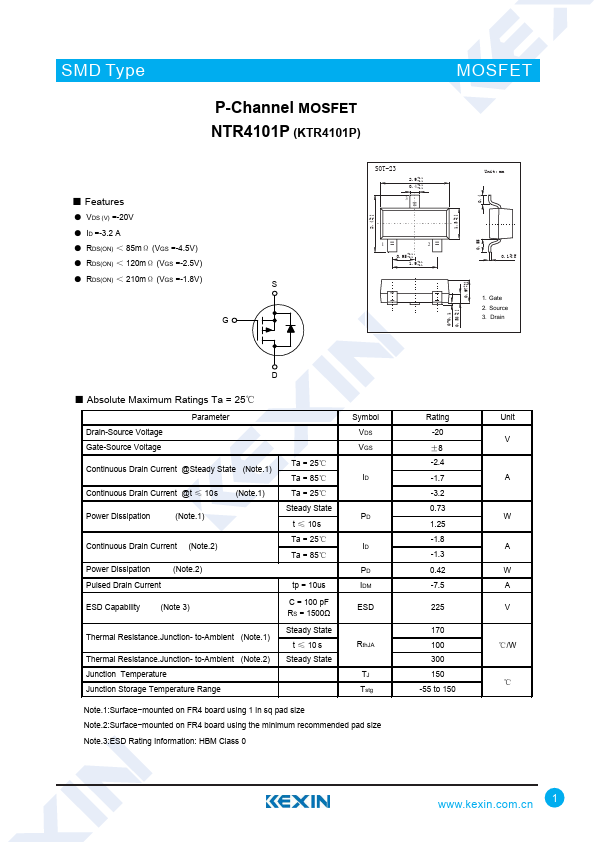

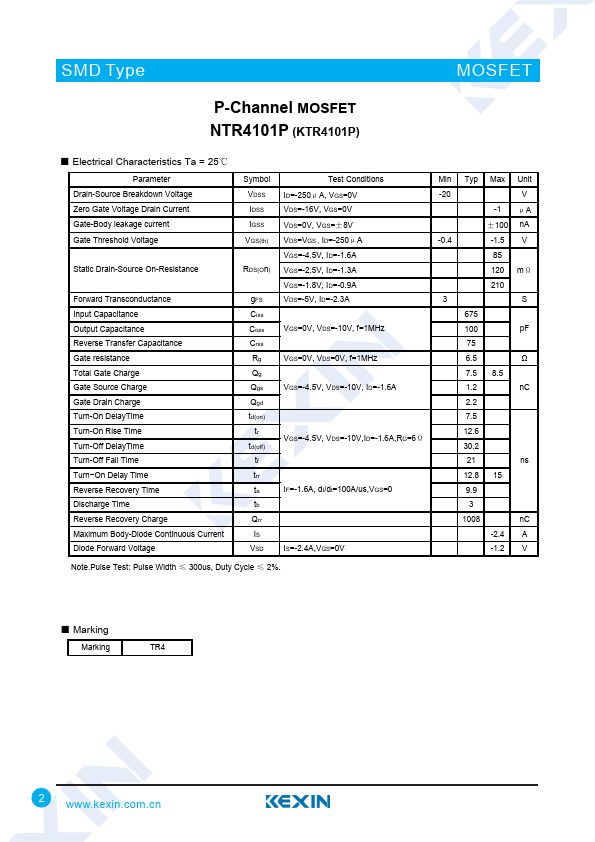

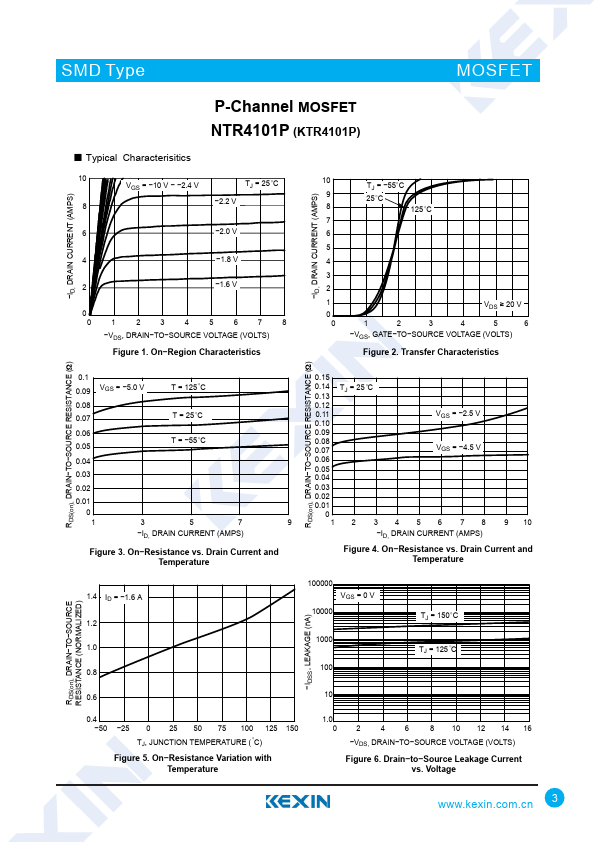

SMD Type P-Channel MOSFET NTR4101P (KTR4101P) MOSFET ■ Features ● VDS (V) =-20V ● ID =-3.2 A ● RDS(ON) ＜ 85mΩ (VGS =-4.5V) ● RDS(ON) ＜ 120mΩ (VGS =-2.5V) ● RDS(ON) ＜ 210mΩ (VGS =-1.8V) S G +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 1. Gate 2. Source 3. Drain 0-0.1 +0.1 0.38 -0.1 D ■ Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current @Steady State (Note.1) Continuous Drain Current @t ≤ 10s Power Dissipation (Note.1) (Note.1) Continuous Drain Current (Note.2) Power Dissipation (Note.2) Pulsed Drain Current ESD Capability (Note 3) Thermal Resistance.Junction- to-Ambient (Note.
