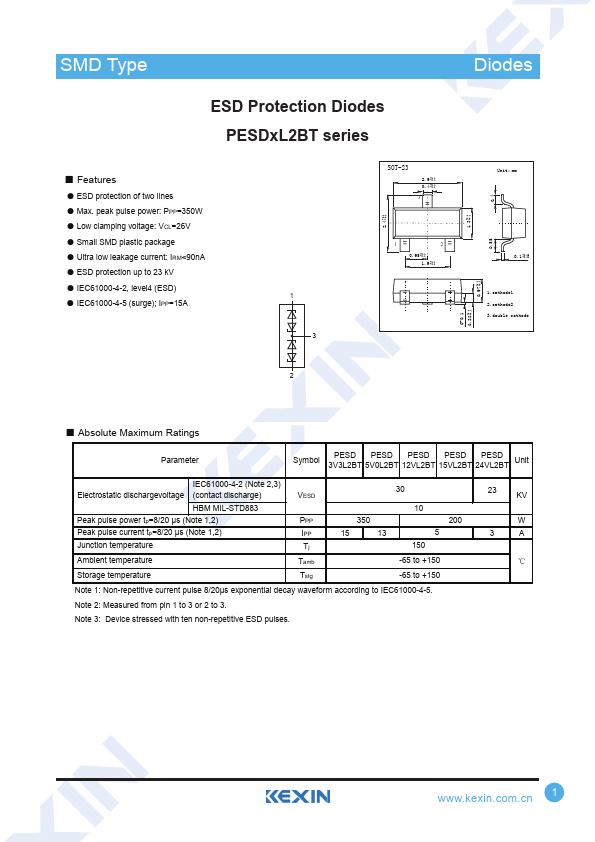

PESD15VL2BT Overview
SMD Type TransDisiotodress ESD Protection Diodes PESDxL2BT series.
PESD15VL2BT Key Features
- ESD protection of two lines
- Max. peak pulse power: PPP=350W
- Low clamping voltage: VCL=26V
- Small SMD plastic package
- Ultra low leakage current: IRM<90nA
- ESD protection up to 23 kV
- IEC61000-4-2, level4 (ESD)
- IEC61000-4-5 (surge); IPP=15A
