Datasheet Details
| Part number | PMEG1020EA |
|---|---|
| Manufacturer | Kexin Semiconductor |
| File Size | 95.05 KB |
| Description | Schottky Diodes |
| Datasheet | PMEG1020EA-Kexin.pdf |
|
|
Overview: SMD Type Schottky Diodes PMEG1020EA TransDisiotodress Ƶ.
| Part number | PMEG1020EA |
|---|---|
| Manufacturer | Kexin Semiconductor |
| File Size | 95.05 KB |
| Description | Schottky Diodes |
| Datasheet | PMEG1020EA-Kexin.pdf |
|
|
|

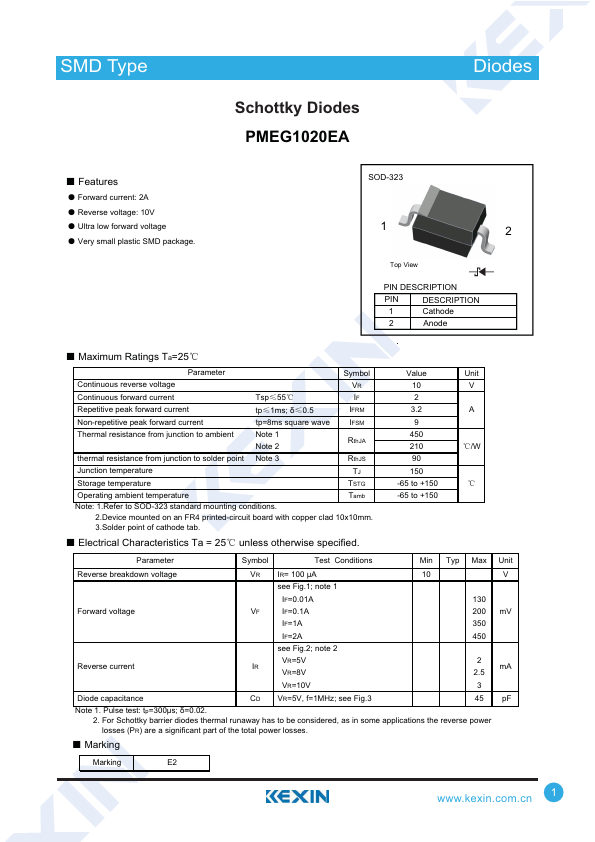

PIN DESCRIPTION 1 Cathode 2 Anode Ƶ Maximum Ratings Ta=25ć Parameter Symbol Continuous reverse voltage VR Continuous forward current Tspİ55ć IF Repetitive peak forward current tpİ1ms;
įİ0.5 IFRM Non-repetitive peak forward current tp=8ms square wave IFSM Thermal resistance from junction to ambient Note 1 Note 2 RthJA thermal resistance from junction to solder point Note 3 RthJS Junction temperature TJ Storage temperature TSTG Operating ambient temperature Tamb Note: 1.Refer to SOD-323 standard mounting conditions.
2.Device mounted on an FR4 printed-circuit board with copper clad 10x10mm.
