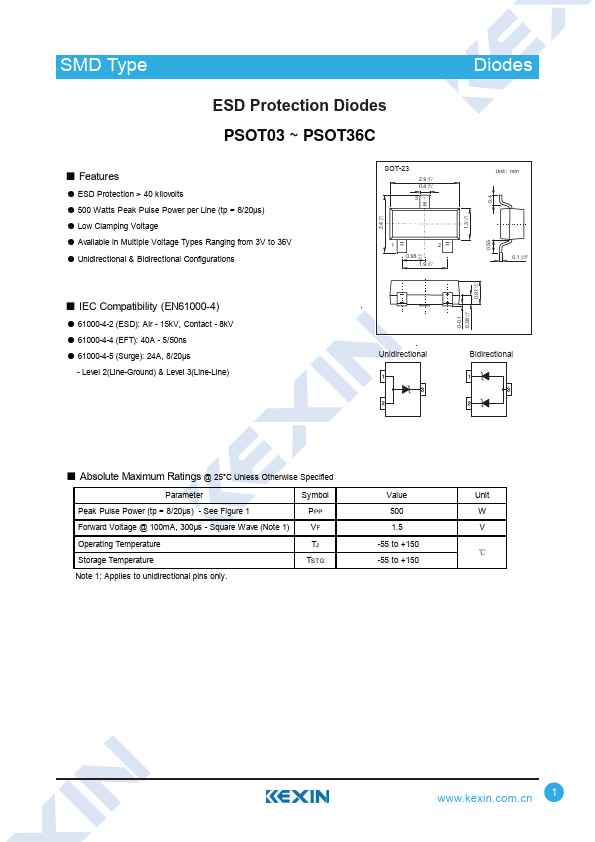

PSOT36C
Features
ƽ ESD Protection > 40 kilovolts ƽ 500 Watts Peak Pulse Power per Line (tp = 8/20μs) ƽ Low Clamping Voltage ƽ Available in Multiple Voltage Types Ranging from 3V to 36V ƽ Unidirectional & Bidirectional Configurations
+0.1 2.4 -0.1
SOT-23
2.9 +0.1 -0.1
0.4 +0.1 -0.1
0.95 +0.1 -0.1 1.9 +0.1 -0.1
+0.1 1.3 -0.1
Diodes
Unit : mm 0.1 +0.05
-0.01
+0.1 0.97 -0.1
Ƶ IEC patibility (EN61000-4)
ƽ 61000-4-2 (ESD): Air
- 15k V, Contact
- 8k V ƽ 61000-4-4 (EFT): 40A
- 5/50ns ƽ 61000-4-5 (Surge): 24A, 8/20μs
- Level 2(Line-Ground) & Level 3(Line-Line)
Unidirectional
Bidirectional
0-0.1 +0.1 0.38
-0.1
Ƶ Absolute Maximum Ratings @ 25°C Unless Otherwise Specified
Parameter
Symbol
Value
Unit
Peak Pulse Power (tp = 8/20μs)

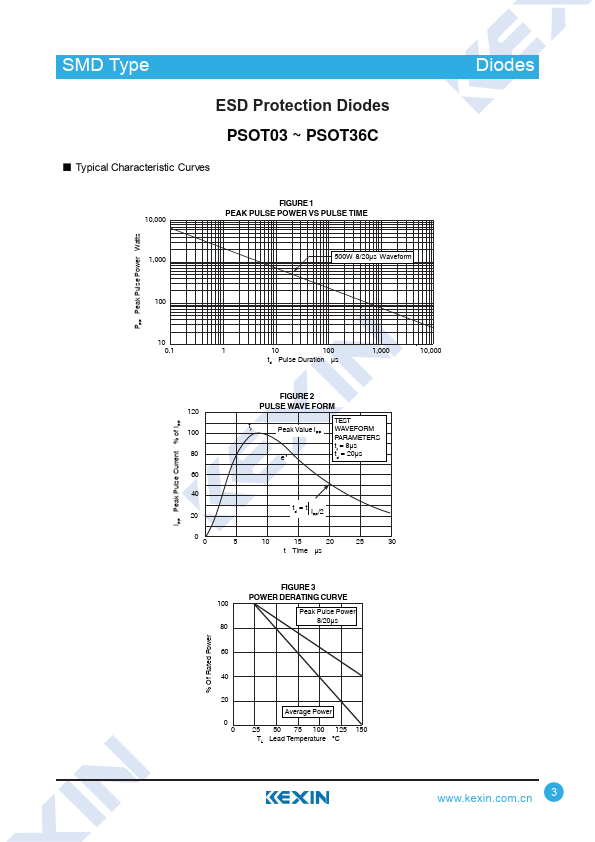

- See Figure 1
Forward Voltage @ 100m A, 300μs
- Square Wave (Note 1)
Operating Temperature Storage...
