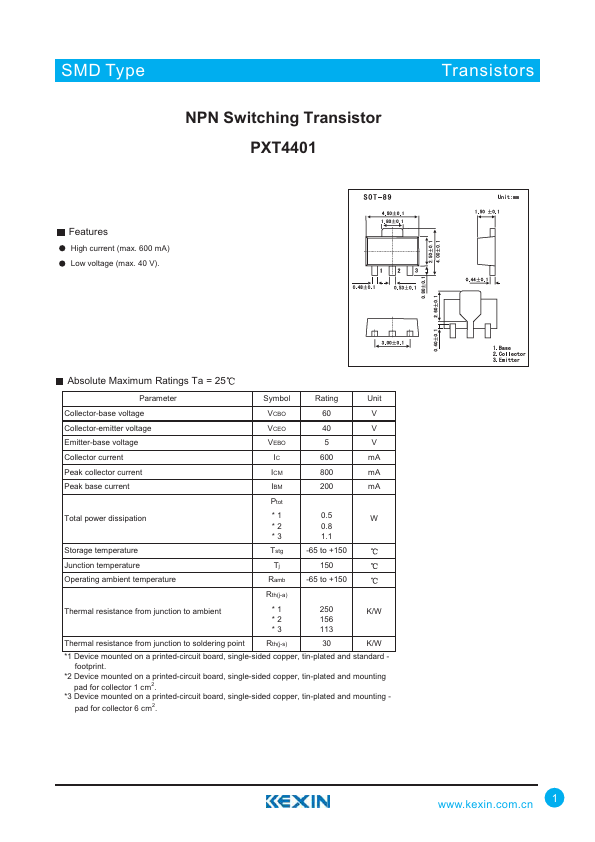

PXT4401 Datasheet NPN Switching Transistor

Manufacturer: Kexin Semiconductor

Overview: SMD Type NPN Switching Transistor PXT4401 Transistors.

Key Features

  • High current (max. 600 mA) Low voltage (max. 40 V). Absolute Maximum Ratings Ta = 25 Parameter Symbol Rating Unit Collector-base voltage VCBO 60 V Collector-emitter voltage VCEO 40 V Emitter-base voltage VEBO 5 V Collector current IC 600 mA Peak collector current ICM 800 mA Peak base current IBM 200 mA Ptot Total power dissipation.
  • 1 0.5 W.
  • 2 0.8.
  • 3 1.1 Storage temperature Tstg -65 to +150 Junction temperature Tj 150 Operating ambient temp.
