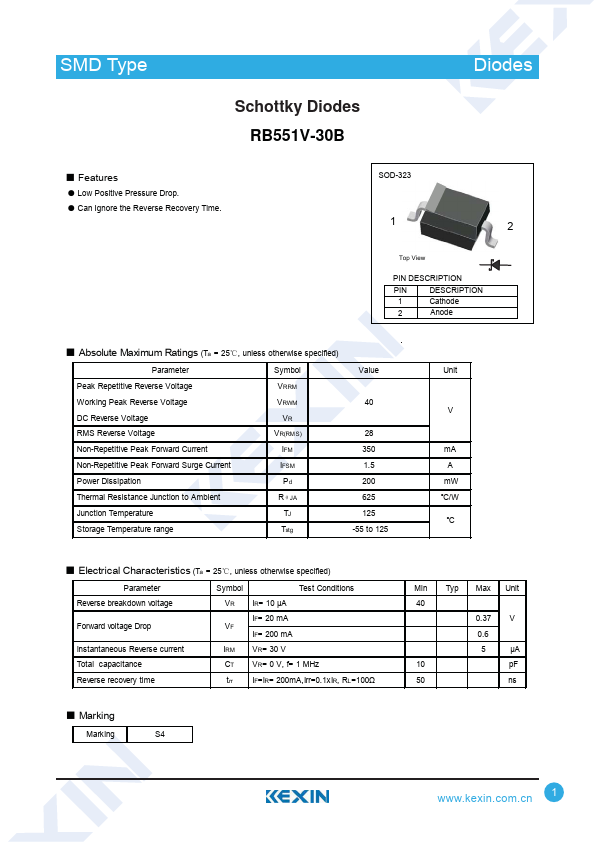

RB551V-30B
RB551V-30B is Schottky Diodes manufactured by Kexin Semiconductor.
Features
ƽ Low Positive Pressure Drop. ƽ Can Ignore the Reverse Recovery Time.

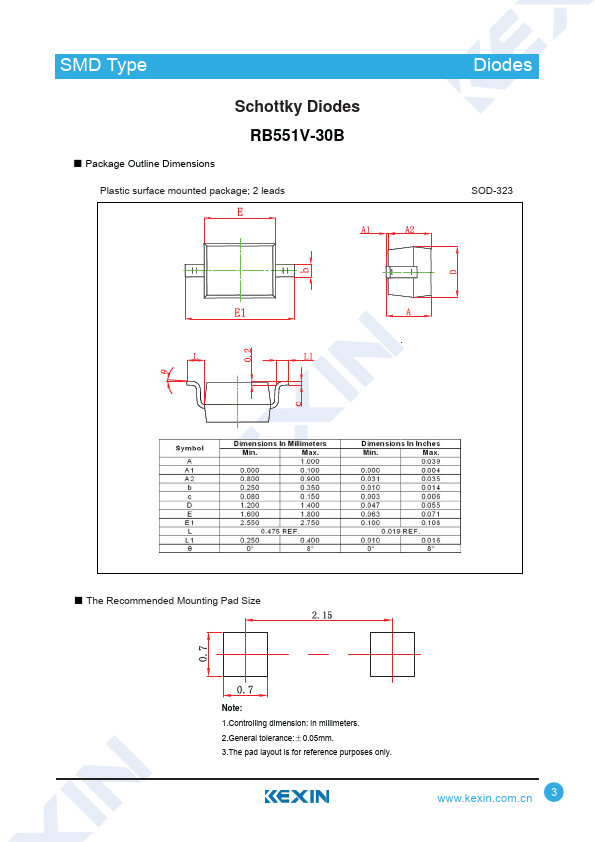

SOD-323
Top View
PIN DESCRIPTION
DESCRIPTION
Cathode
Anode
Ƶ Absolute Maximum Ratings (Ta = 25ć, unless otherwise specified)
Parameter
Symbol
Peak Repetitive Reverse Voltage
VRRM
Working Peak Reverse Voltage
VRWM
DC Reverse Voltage
RMS Reverse Voltage
VR(RMS)
Non-Repetitive Peak Forward Current
Non-Repetitive Peak Forward Surge Current
IFSM
Power Dissipation
Pd
Thermal Resistance Junction to Ambient
R©JA
Junction Temperature
Storage Temperature range
Tstg
Value
28 350 1.5 200 625 125 -55 to...
