RHP020N06 - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 60V.
  • ID = 2 A (VGS = 10V).
  • RDS(ON) ＜ 200mΩ (VGS = 10V).
  • RDS(ON) ＜ 280mΩ (VGS = 4.5V).
  • RDS(ON) ＜ 340mΩ (VGS = 4V).
  • High speed switching DRAIN SOT-89 1.70 0.1 Unit:mm 0.42 0.1 0.46 0.1 1.Gate 2.Drain 3.Source GATE.
  • 2.
  • 1 SOURCE.
  • 1 ESD.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
RHP020N06 4V Drive N-Channel MOSFET Rohm
RHP020N06FRA 4V Drive Nch MOSFET ROHM
RHP030N03 Drive Nch MOS FET Rohm
RHP030N03FRA 4V Drive Nch MOSFET ROHM
RHP-520 VHF Airband Transceiver REXON

Other Datasheets by Kexin Semiconductor

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

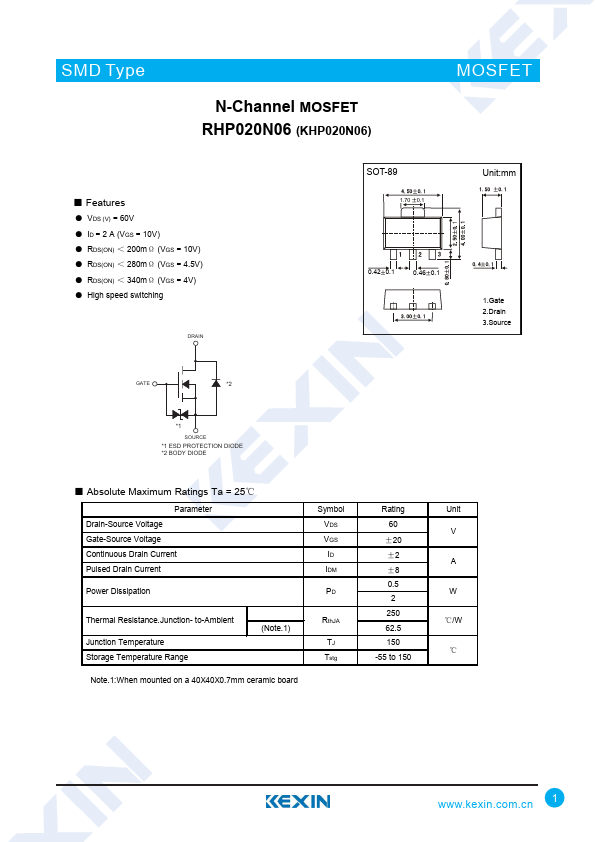

SMD Type N-Channel MOSFET RHP020N06 (KHP020N06) MOSFET ■ Features ● VDS (V) = 60V ● ID = 2 A (VGS = 10V) ● RDS(ON) ＜ 200mΩ (VGS = 10V) ● RDS(ON) ＜ 280mΩ (VGS = 4.5V) ● RDS(ON) ＜ 340mΩ (VGS = 4V) ● High speed switching DRAIN SOT-89 1.70 0.1 Unit:mm 0.42 0.1 0.46 0.1 1.Gate 2.Drain 3.Source GATE *2 *1 SOURCE *1 ESD PROTECTION DIODE *2 BODY DIODE ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current Power Dissipation Symbol VDS VGS ID IDM PD Thermal Resistance.Junction- to-Ambient Junction Temperature Storage Temperature Range (Note.1) Note.1:When mounted on a 40X40X0.7mm ceramic board RthJA TJ Tstg Rating 60 ±20 ±2 ±8 0.5 2 250 62.5 150 -55 to 150 Unit V A W ℃/W ℃ www.kexin.com.
