Part RN2304
Description Digital PNP Transistors
Category Transistor
Manufacturer Kexin Semiconductor
Size 801.45 KB
RN2304 Datasheet (PDF) Download
Pricing from 0.036 USD, available from CoreStaff and Verical.
🏠
Kexin Semiconductor

RN2304 Overview

Key Specifications

Package: SC
Mount Type: Surface Mount
Pins: 3
Max Operating Temp: 150 °C

Key Features

  • COLLECTOR Ƶ Collector
  • Base Voltage Collector
  • Emitter Voltage Parameter Emitter
  • Base Voltage Collector Current Collector Power Dissipation Junction Temperature Storage Temperature Range Symbol Rating Unit VCBO
  • 50 RN2301~2306 VCEO

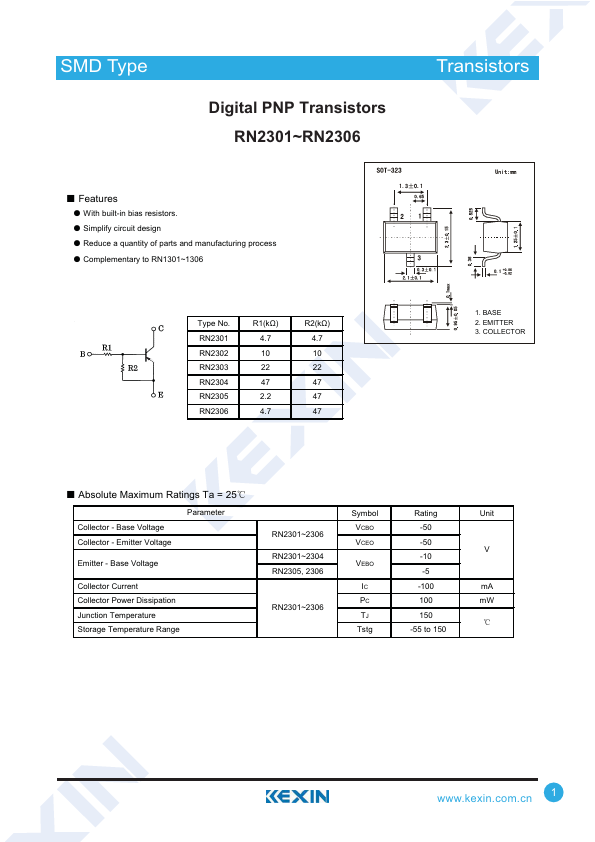

RN2304 datasheet preview

Price & Availability

Seller Inventory Price Breaks Buy
CoreStaff 573 1+ : 0.036 USD
10+ : 0.036 USD
50+ : 0.035 USD
100+ : 0.035 USD		 View Offer
Verical 573 569+ : 0.133 USD View Offer

Related Datasheets

Part Number Manufacturer Description
RN2304 Toshiba Silicon PNP Epitaxial Type Transistors
RN2303 Toshiba Silicon PNP Epitaxial Type Transistors
RN2309 Toshiba Silicon PNP Epitaxial Type Transistors
RN2301 Toshiba Silicon PNP Epitaxial Type Transistors
RN2306 Toshiba Silicon PNP Epitaxial Type Transistors

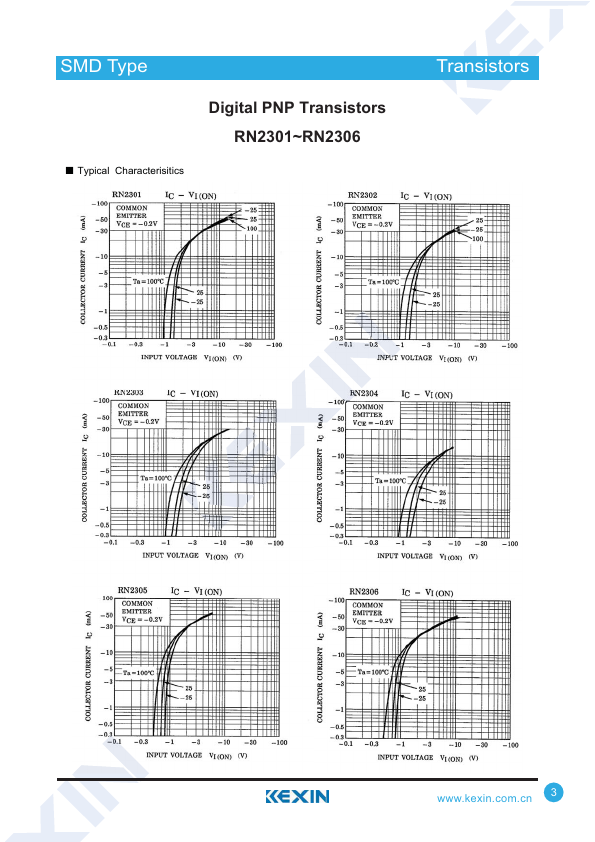

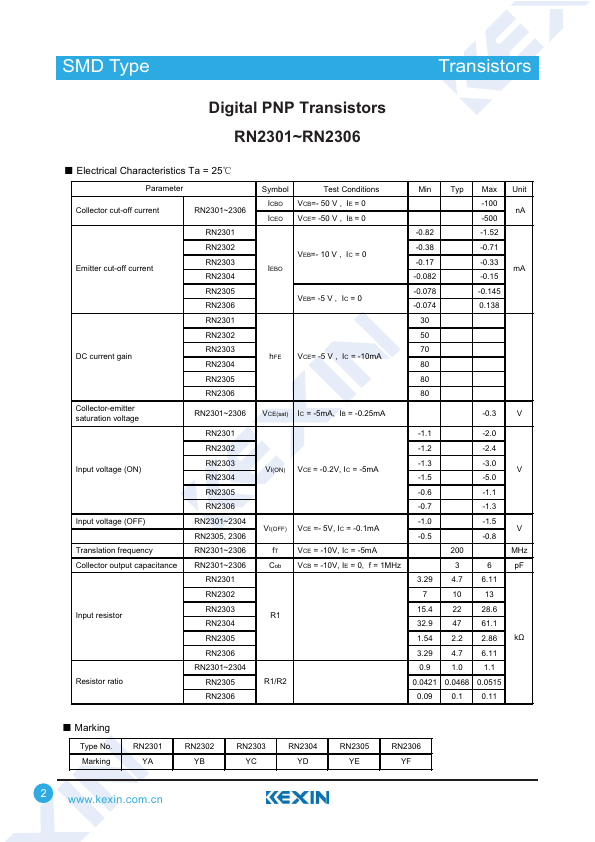

RN2304 Datasheet
