SI2341DS - P-Channel Enhancement MOSFET

Key Features

  • s.
  • VDS (V) =-30V.
  • ID =-2.8A (VGS =-10V).
  • RDS(ON) ＜ 72mΩ (VGS =-10V).
  • RDS(ON) ＜ 120mΩ (VGS =-4.5V) G1 S2 3D +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 MOSFET Unit: mm 0.1 +0.05 -0.01 1.Gate 2.Source 3.Drain 0-0.1 +0.1 0.38 -0.1.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current.
  • 1 Pulsed Drain Current Power Dissipatio.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SI2341DS P-Channel MOSFET Vishay Siliconix
SI2341DS-T1-GE3 30V P-Channel MOSFET VBsemi
Si2341 P-Channel 30-V (D-S) MOSFET Tuofeng Semiconductor
SI2342DS N-Channel MOSFET Vishay Siliconix
SI2343CDS P-Channel MOSFET VISHAY

Other Datasheets by Kexin Semiconductor

Part Number Description
SI2341DS-HF P-Channel MOSFET
SI2343DS P-Channel MOSFET
SI2300 N-Channel MOSFET
SI2301 P-Channel MOSFET
SI2301BDS P-Channel Enhancement MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

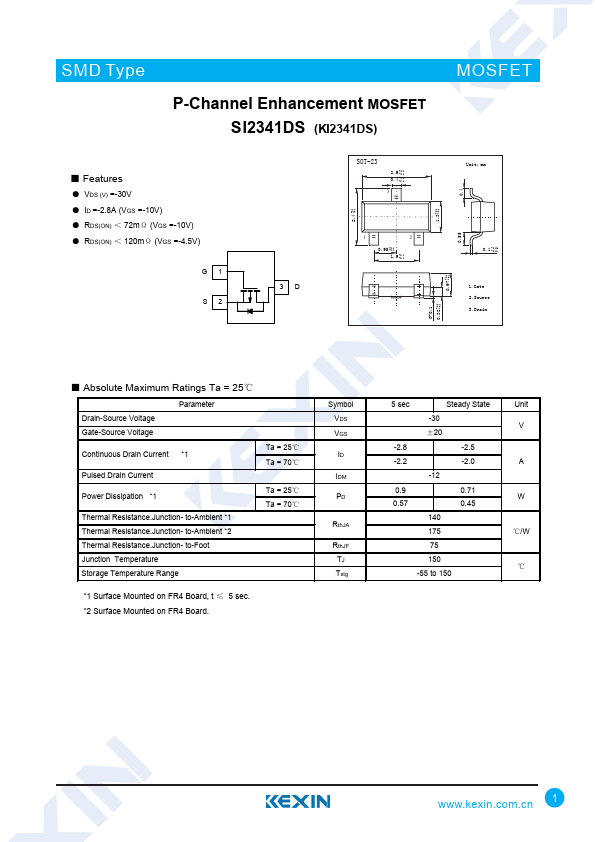

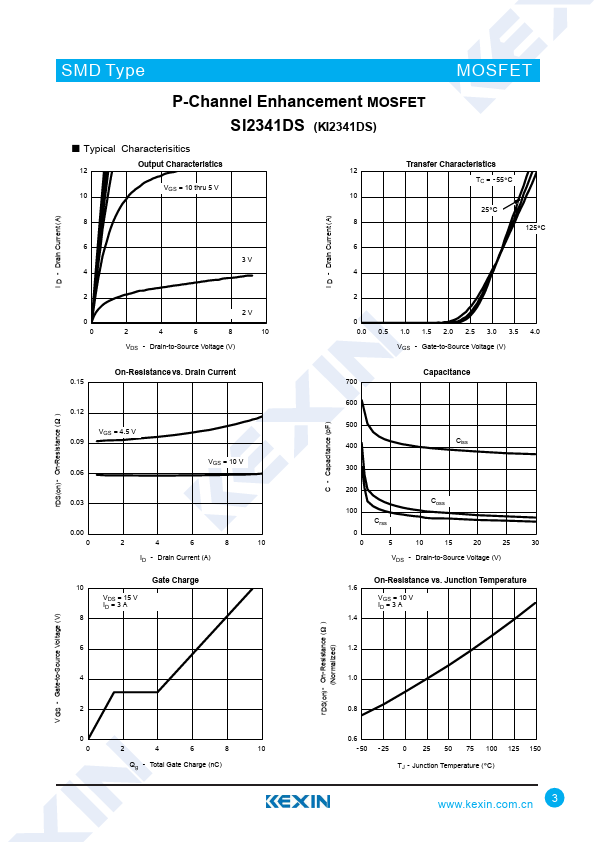

SMD Type P-Channel Enhancement MOSFET SI2341DS (KI2341DS) ■ Features ● VDS (V) =-30V ● ID =-2.8A (VGS =-10V) ● RDS(ON) ＜ 72mΩ (VGS =-10V) ● RDS(ON) ＜ 120mΩ (VGS =-4.5V) G1 S2 3D +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 MOSFET Unit: mm 0.1 +0.05 -0.01 1.Gate 2.Source 3.Drain 0-0.1 +0.1 0.38 -0.1 ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current *1 Pulsed Drain Current Power Dissipation *1 Thermal Resistance.Junction- to-Ambient *1 Thermal Resistance.Junction- to-Ambient *2 Thermal Resistance.
