SI2372DS - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 30V.
  • ID = 5.3 A (VGS = 10V).
  • RDS(ON) ＜ 33mΩ (VGS = 10V).
  • RDS(ON) ＜ 38mΩ (VGS = 6V).
  • RDS(ON) ＜ 43mΩ (VGS = 4.5V) +0.2 2.8 -0.1 SOT-23-3 2.9 +0.2 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.2 D 0-0.1 +0.1 0.68 -0.1 +0.2 1.6 -0.1 +0.2 1.1 -0.1 0.55 0.4 Unit: mm 0.15 +0.02 -0.02 1. Gate 2. Source 3. Drain G S.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Tc=25℃ Continuous Drain Current (TJ =.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SI2372DS N-Channel MOSFET Vishay
Si2371EDS P-Channel 30v MOSFET Vishay
Si2374DS N-Channel MOSFET Vishay
Si2377EDS P-Channel 20V (D-S) MOSFET Vishay
SI2300 N-Channel MOSFET HAOCHANG

Other Datasheets by Kexin Semiconductor

Part Number Description
SI2300 N-Channel MOSFET
SI2301 P-Channel MOSFET
SI2301BDS P-Channel Enhancement MOSFET
SI2301DS P-Channel MOSFET
SI2301DS-HF P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

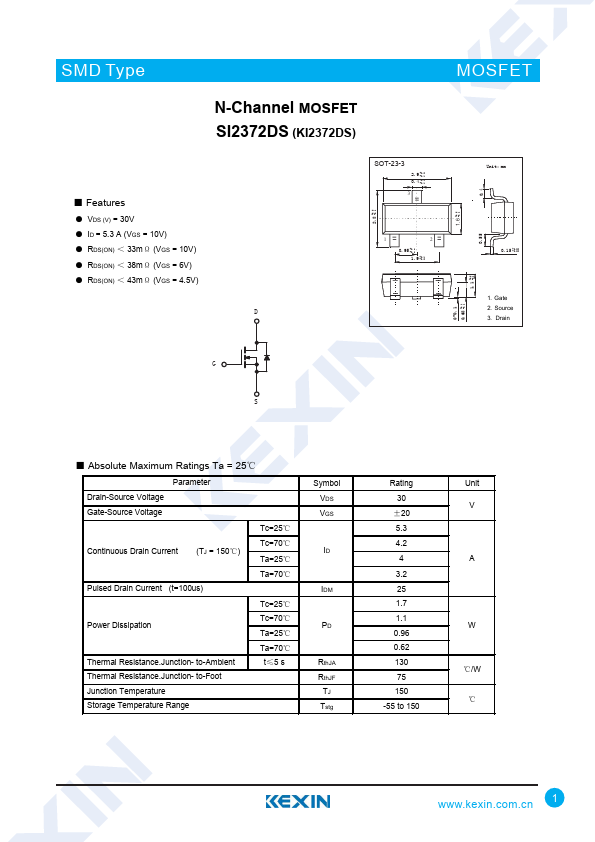

SMD Type MOSFET N-Channel MOSFET SI2372DS (KI2372DS) ■ Features ● VDS (V) = 30V ● ID = 5.3 A (VGS = 10V) ● RDS(ON) ＜ 33mΩ (VGS = 10V) ● RDS(ON) ＜ 38mΩ (VGS = 6V) ● RDS(ON) ＜ 43mΩ (VGS = 4.5V) +0.2 2.8 -0.1 SOT-23-3 2.9 +0.2 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.2 D 0-0.1 +0.1 0.68 -0.1 +0.2 1.6 -0.1 +0.2 1.1 -0.1 0.55 0.4 Unit: mm 0.15 +0.02 -0.02 1. Gate 2. Source 3. Drain G S ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Tc=25℃ Continuous Drain Current (TJ = 150℃) Tc=70℃ Ta=25℃ Pulsed Drain Current (t=100us) Ta=70℃ Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.
