SI4463BDY - P-Channel MOSFET

Key Features

  • s.
  • VDS (V) =-20V.
  • ID =-13.7 A (VGS =-10V).
  • RDS(ON) ＜ 11mΩ (VGS =-10V).
  • RDS(ON) ＜ 14mΩ (VGS =-4.5V).
  • RDS(ON) ＜ 20mΩ (VGS =-2.5V) S +0.04 0.21 -0.02 SOP-8 G MOSFET 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain D.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Ta = 25℃ Ta = 70℃ Pulsed Drain Current Power Dissipation Ta = 25℃ Ta = 70℃ Thermal Resistance. Junctio.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SI4463BDY P-Channel 2.5V MOSFET Vishay
Si4463 LOW-CURRENT TRANSCEIVER Silicon Laboratories
Si4463-A1 LOW-CURRENT TRANSCEIVER Silicon Laboratories
Si4463-C LOW-CURRENT TRANSCEIVER Silicon Laboratories
Si4460 LOW-CURRENT TRANSCEIVER Silicon Laboratories

Other Datasheets by Kexin Semiconductor

Part Number Description
SI4410DY N-Channel MOSFET
SI4435DY P-Channel MOSFET
SI4490DY N-Channel MOSFET
SI4490DY-HF N-Channel MOSFET
SI4558DY Complementary Power Trench MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

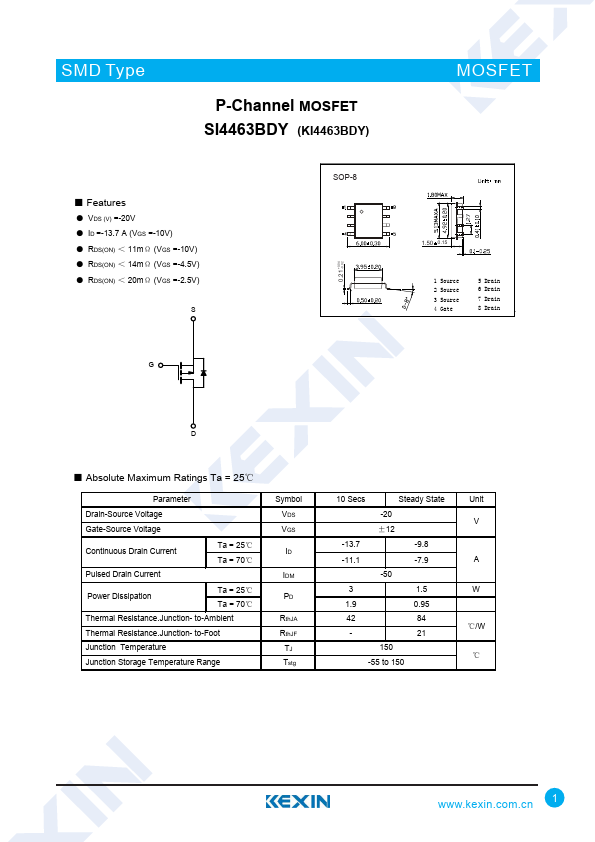

SMD Type P-Channel MOSFET SI4463BDY (KI4463BDY) ■ Features ● VDS (V) =-20V ● ID =-13.7 A (VGS =-10V) ● RDS(ON) ＜ 11mΩ (VGS =-10V) ● RDS(ON) ＜ 14mΩ (VGS =-4.5V) ● RDS(ON) ＜ 20mΩ (VGS =-2.5V) S +0.04 0.21 -0.02 SOP-8 G MOSFET 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain D ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Ta = 25℃ Ta = 70℃ Pulsed Drain Current Power Dissipation Ta = 25℃ Ta = 70℃ Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Foot Junction Temperature Junction Storage Temperature Range Symbol VDS VGS ID IDM PD RthJA RthJF TJ Tstg 10 Secs Steady State -20 ±12 -13.7 -9.8 -11.1 -7.9 -50 3 1.5 1.9 0.
