SI4490DY - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 200V.
  • ID = 4A (VGS = 10V).
  • RDS(ON) ＜ 80mΩ (VGS = 10V).
  • RDS(ON) ＜ 90mΩ (VGS = 6V) D G SOP-8 +0.04 0.21 -0.02 S MOSFET 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ=150℃).
  • 1 Pulsed Drain Current Avalanch Current Power Dissipation.
  • 1 Thermal Resistance. Junction- to-Ambient Thermal Resistance. Junc.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SI4490DY N-Channel MOSFET Vishay Siliconix
Si4491EDY P-Channel 30V (D-S) MOSFET Vishay
SI4493DY P-Channel MOSFET Vishay Siliconix
SI4496DY R-C Thermal Parameters Vishay
SI4497DY P-Channel MOSFET Vishay

Other Datasheets by Kexin Semiconductor

Part Number Description
SI4490DY-HF N-Channel MOSFET
SI4410DY N-Channel MOSFET
SI4435DY P-Channel MOSFET
SI4558DY Complementary Power Trench MOSFET
SI4634DY N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

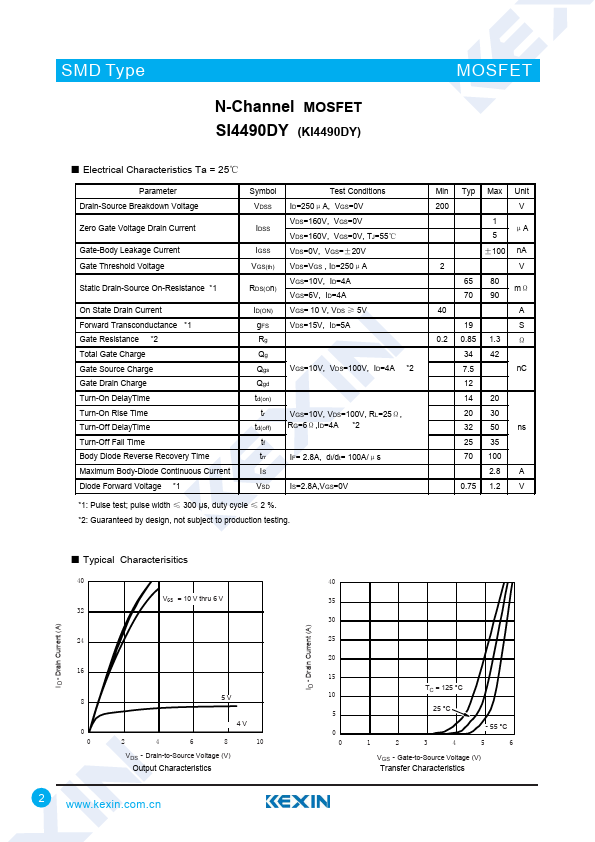

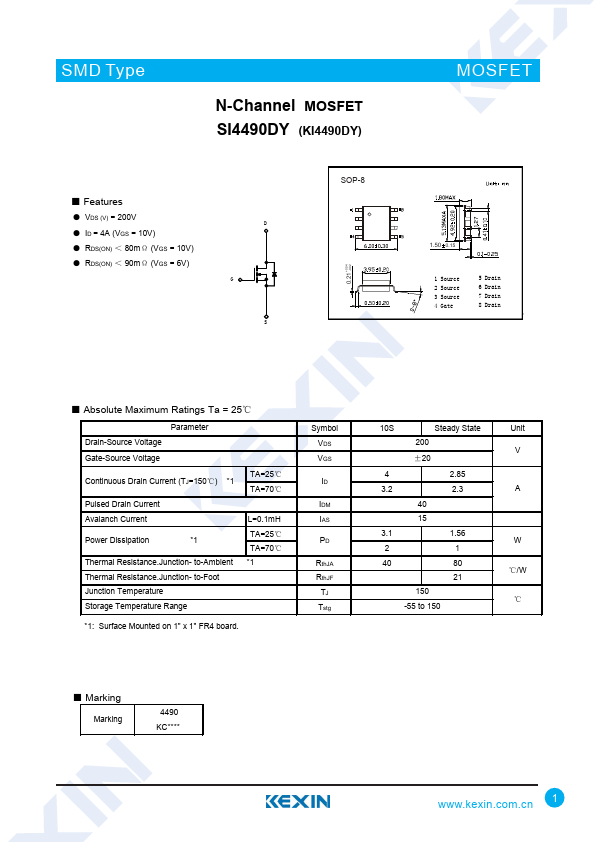

SMD Type N-Channel MOSFET SI4490DY (KI4490DY) ■ Features ● VDS (V) = 200V ● ID = 4A (VGS = 10V) ● RDS(ON) ＜ 80mΩ (VGS = 10V) ● RDS(ON) ＜ 90mΩ (VGS = 6V) D G SOP-8 +0.04 0.21 -0.02 S MOSFET 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ=150℃) *1 Pulsed Drain Current Avalanch Current Power Dissipation *1 Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Foot Junction Temperature Storage Temperature Range TA=25℃ TA=70℃ L=0.1mH TA=25℃ TA=70℃ *1 *1: Surface Mounted on 1" x 1" FR4 board. Symbol VDS VGS ID IDM IAS PD RthJA RthJF TJ Tstg 10S Steady State 200 ±20 4 2.85 3.2 2.3 40 15 3.1 1.
