SI4946DY - Dual N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 60V.
  • ID = 6.5 A (VGS = 10V).
  • RDS(ON) ＜ 41mΩ (VGS = 10V).
  • RDS(ON) ＜ 52mΩ (VGS = 4.5V).
  • 175 °C Maximum Junction Temperature +0.04 0.21 -0.02 D1 D2 MOSFET 1.50 0.15 1 Source1 2 Gate1 3 Source2 4 Gate2 5 Drain2 6 Drain2 7 Drain1 8 Drain1 G1 G2 S1 S2.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current Avalanche Current Single-Pulse Avalanche Energy Power Dissipation.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SI4946DY-T1-E3 60V Dual N-Channel MOSFET VBsemi
SI4946BEY Dual N-Channel MOSFET Vishay Siliconix
SI4946BEY-T1 Dual N-Channel MOSFET VBsemi
SI4946BEY-T1-E3 Dual N-Channel MOSFET VBsemi
SI4946EY Dual N-Channel MOSFET Vishay Siliconix

Other Datasheets by Kexin Semiconductor

Part Number Description
SI4953ADY Dual P-Channel MOSFET
SI4953DY Dual P-Channel MOSFET
SI4410DY N-Channel MOSFET
SI4435DY P-Channel MOSFET
SI4463BDY P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

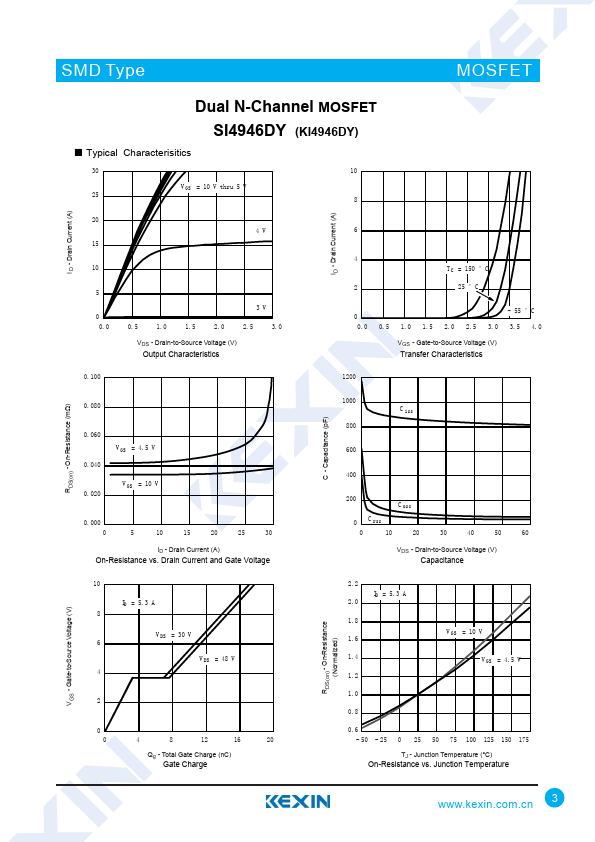

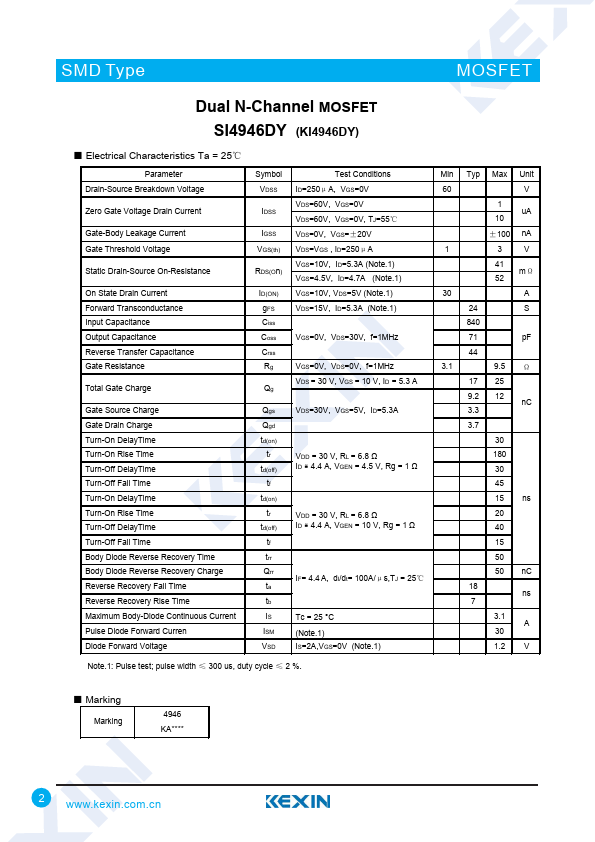

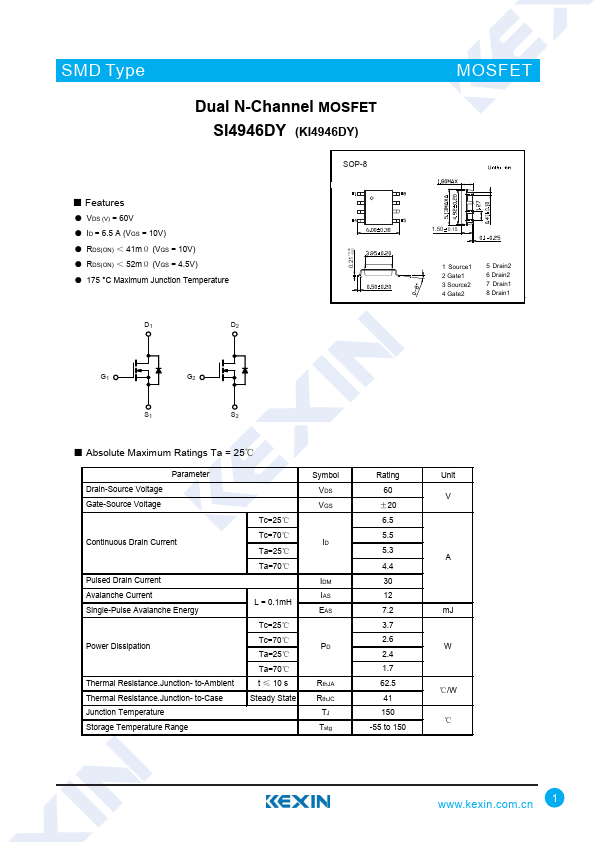

SMD Type Dual N-Channel MOSFET SI4946DY (KI4946DY) SOP-8 ■ Features ● VDS (V) = 60V ● ID = 6.5 A (VGS = 10V) ● RDS(ON) ＜ 41mΩ (VGS = 10V) ● RDS(ON) ＜ 52mΩ (VGS = 4.5V) ● 175 °C Maximum Junction Temperature +0.04 0.21 -0.02 D1 D2 MOSFET 1.50 0.15 1 Source1 2 Gate1 3 Source2 4 Gate2 5 Drain2 6 Drain2 7 Drain1 8 Drain1 G1 G2 S1 S2 ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current Avalanche Current Single-Pulse Avalanche Energy Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Case Junction Temperature Storage Temperature Range Tc=25℃ Tc=70℃ Ta=25℃ Ta=70℃ L = 0.
